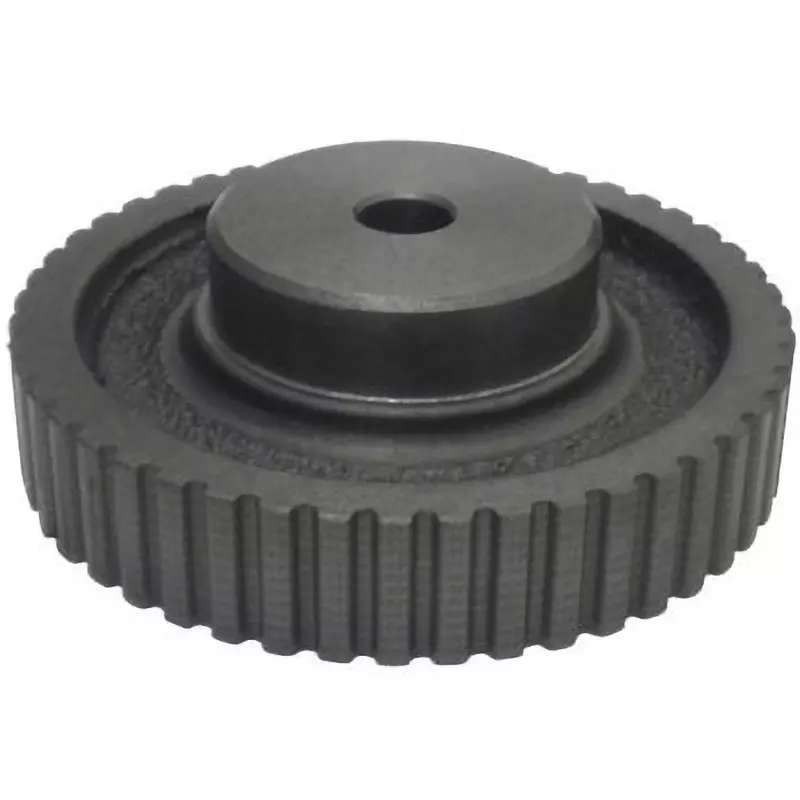

| Type of Product | Timing Pulley |
| Model No | PT5-10-48W |
| Country of Origin | Japan |
| No. of Teeth | 48 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
PT5-10-48W |
Country of Origin |
Japan |
No. of Teeth |
48 |
Type |
T5 Type |

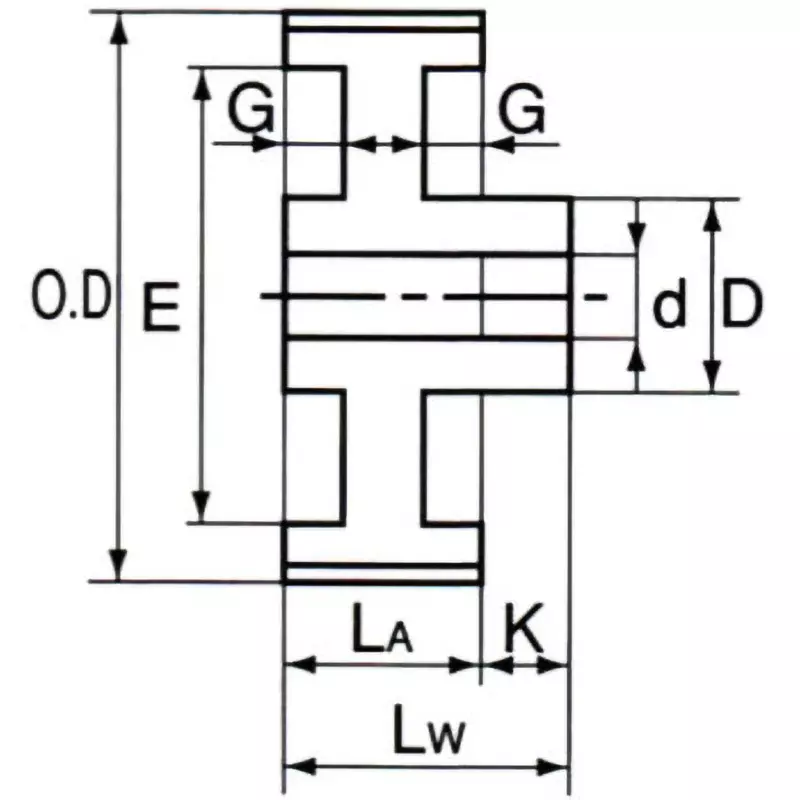

Dimension LA (mm) |
15 |
Monotaro ID |
35269491 |
Pitch Diameter (Φmm) |
76.39 |
Dimension K |
10 mm |
Shaft Hole Diameter d (mm) |
10-25 mm |
Dimension D (Φmm) |
35 mm |
Suitable Belt Width (mm) |
10 |
Compatible Belt |
T5 |
Outer Diameter |
75.55 mm |
Pulley |
W Type |
Dimension G |
5 mm |
Dimension E |
63 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
