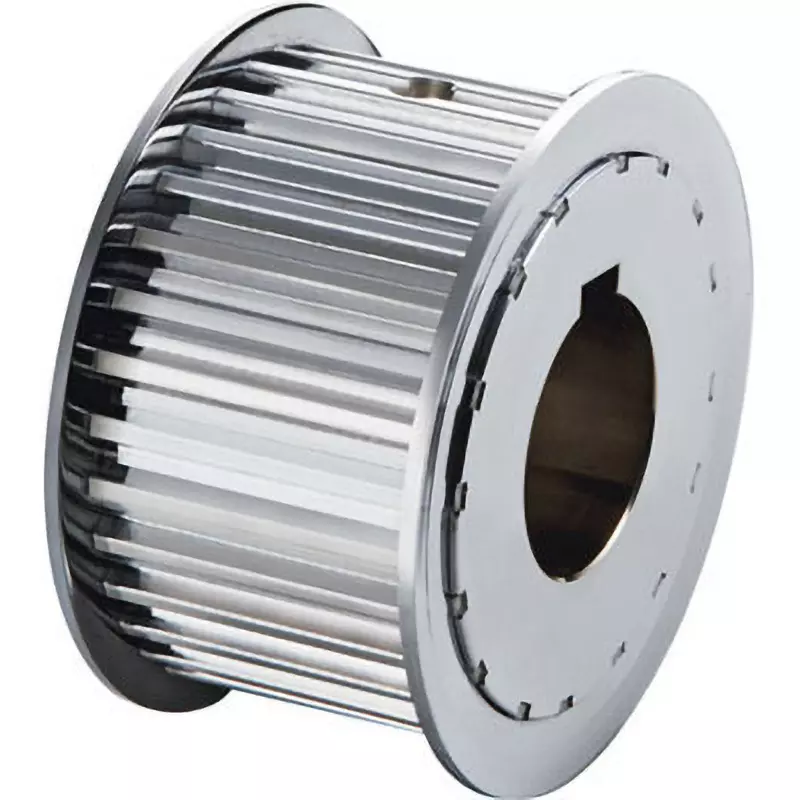

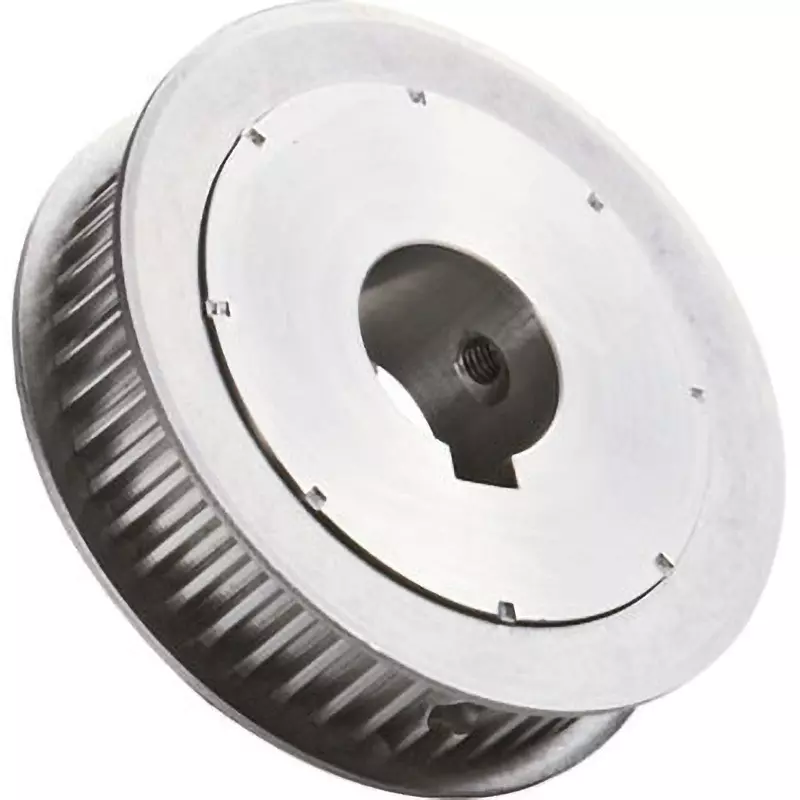

| Type of Product | Complete Timing Pulley |
| Model No | S2-21S8M0400AF-24T3K |
| Country of Origin | Japan |
| No. of Teeth | 21 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Complete Timing Pulley |
Model No |
S2-21S8M0400AF-24T3K |
Country of Origin |
Japan |
No. of Teeth |
21 |
Width |
40 mm |
Type |
Starquick S8M |

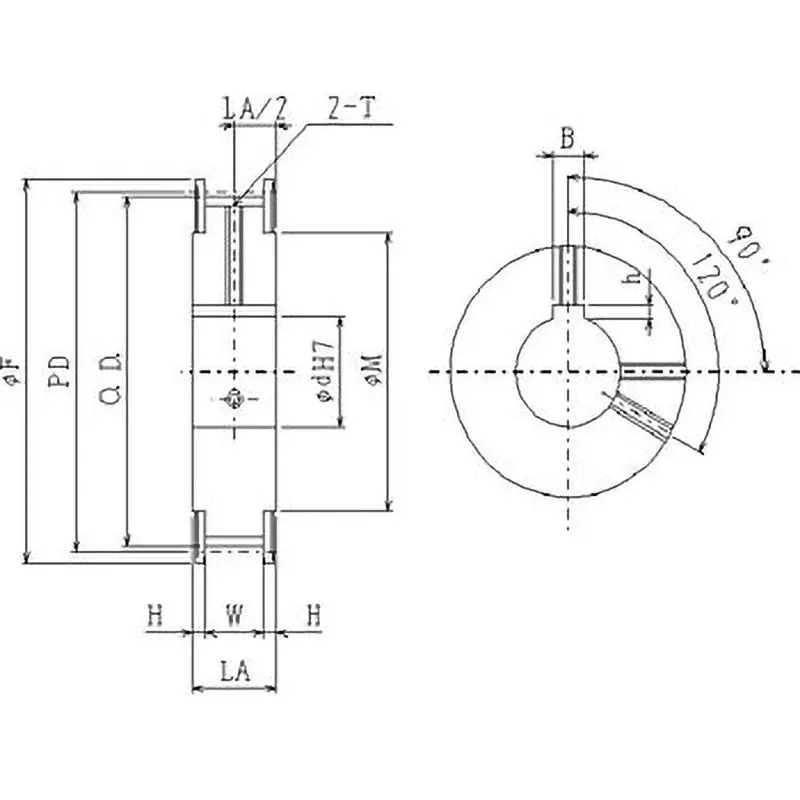

Dimension LA (mm) |
51 |
Monotaro ID |
58519151 |
Dimension H |
3.5 mm |
Surface Treatment |
Black Dyed |
Finish Processing |
2 Taps (on Key / 120° Position) |
Dimensions PD (mm) |
53.48 |
Keyway height h (mm) |
3.3 |
Shaft Hole Diameter (mm) |
24 mm |
Material (Pulley) |
Steel |
Shape |
With Flange |
Dimension OD (mm) |
52.1 |
Dimension M |
44 mm |
Dimension W |
44 mm |
Keyway width B (mm) |
8 |
Dimension F |
62 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
