| Type of Product | Timing Pulley |
| Model No | T10-15-20B |
| Material | Steel |
| Country of Origin | JAPAN |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
T10-15-20B |
Material |
Steel |
Country of Origin |
JAPAN |
No. of Teeth |
20 |

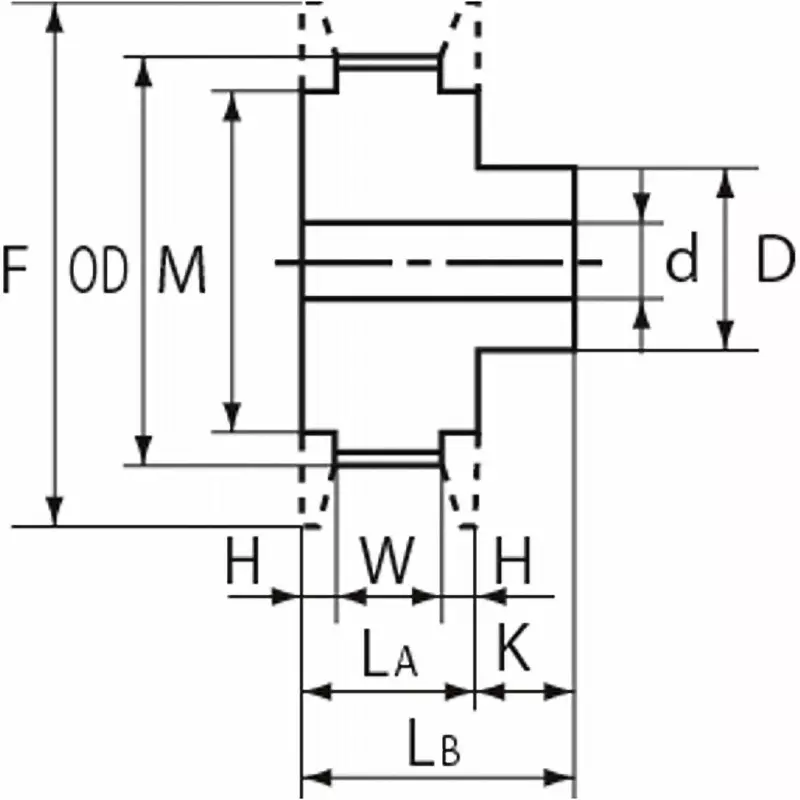

Dimension LB (mm) |
32 |
Dimension LA (mm) |
22 |
Monotaro ID |
47943384 |
Pitch Diameter (Φmm) |
63.66 |
Dimension K |
10 mm |
Shaft Hole Diameter d (mm) |
12-28 mm |
Suitable Flange |
F-166950 |
Dimension H |
2.5 mm |
Shape |
B Type |
Dimension W |
17 mm |
Dimension d |
40 mm |
Mass |
0.53 Kg |
Maximum shaft hole diameter d (Φmm) |
28 |
Min. Shaft Hole Diameter d |
12 mm |
Tooth Type |
T10 Type |
Included Components |
Flange |
Cell Spacing (mm) |
10 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
