| Type of Product | Timing Pulley |
| Model No | P12-L-050B |
| Material | Steel |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
P12-L-050B |
Material |
Steel |
Country of Origin |
Japan |
No. of Teeth |
12 |

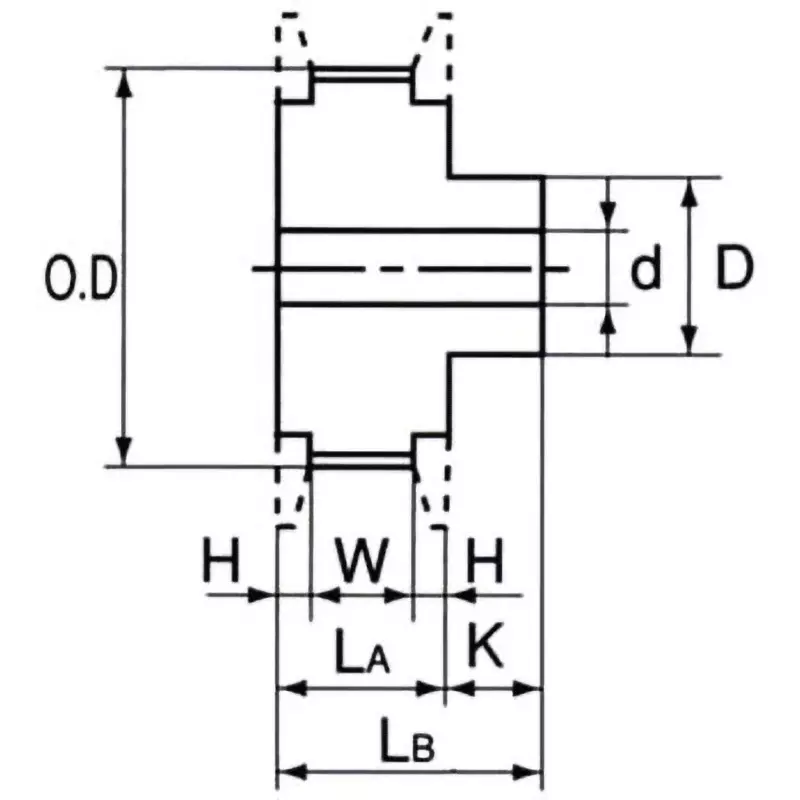

Dimension LB (mm) |
31 |
Type |
L050 B Type |
Dimension LA (mm) |
19 |
Monotaro ID |
35267906 |
Pitch Diameter (Φmm) |
36.38 |
Dimension K |
12 mm |
Shaft Hole Diameter d (mm) |
8-18 mm |
Dimension D (Φmm) |
25 mm |
Suitable Flange |
F-104328 |
Suitable Belt Width (mm) |
12.7 |
Compatible Belt |
L |
Outer Diameter |
35.62 mm |
Tooth width W (mm) |
14 |
Dimension H |
2.5 mm |
Pulley |
B Type |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
