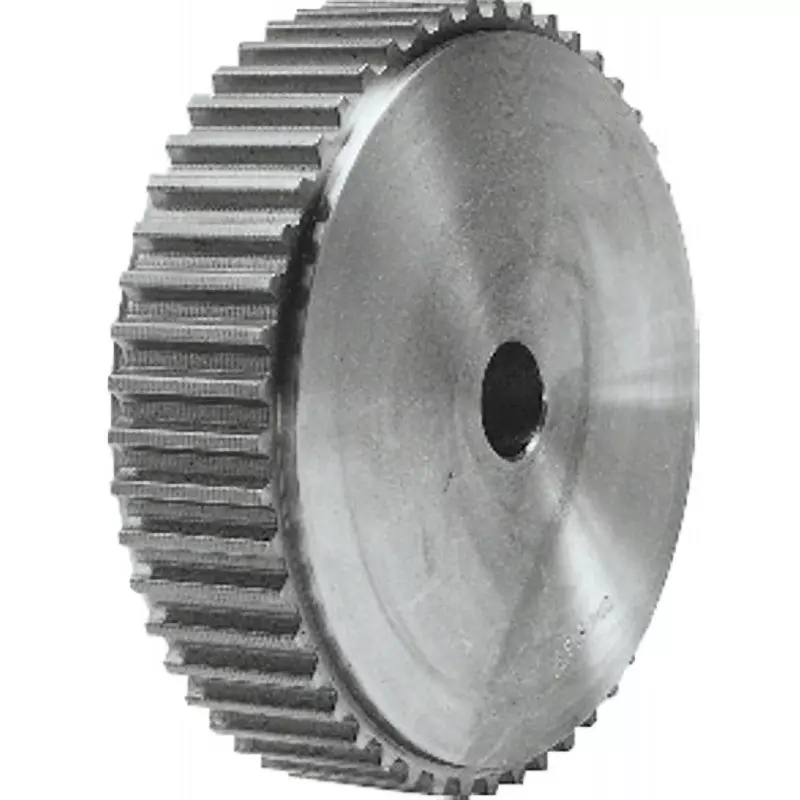

| Type of Product | Timing Pulley |
| Model No | 16H100A |
| Material | Steel |
| Country of Origin | JAPAN |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
16H100A |
Material |
Steel |
Country of Origin |
JAPAN |
No. of Teeth |
16 |

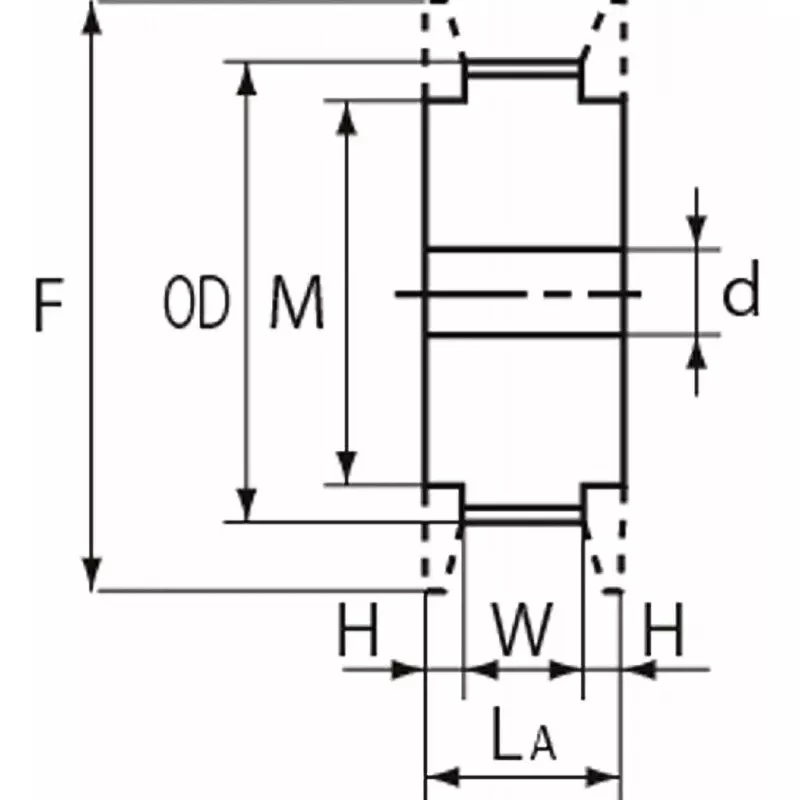

Dimension LA (mm) |
33 |
Monotaro ID |
47873971 |
Pitch Diameter (Φmm) |
64.68 |
Shaft Hole Diameter d (mm) |
16-30 mm |
Suitable Flange |
F-166950 |
Dimension H |
2.5 mm |
Shape |
A Type |
Dimension W |
28 mm |
Mass |
0.68 Kg |
Nominal Width |
100 (25.4 mm) |
Maximum shaft hole diameter d (Φmm) |
30 |
Min. Shaft Hole Diameter d |
16 mm |

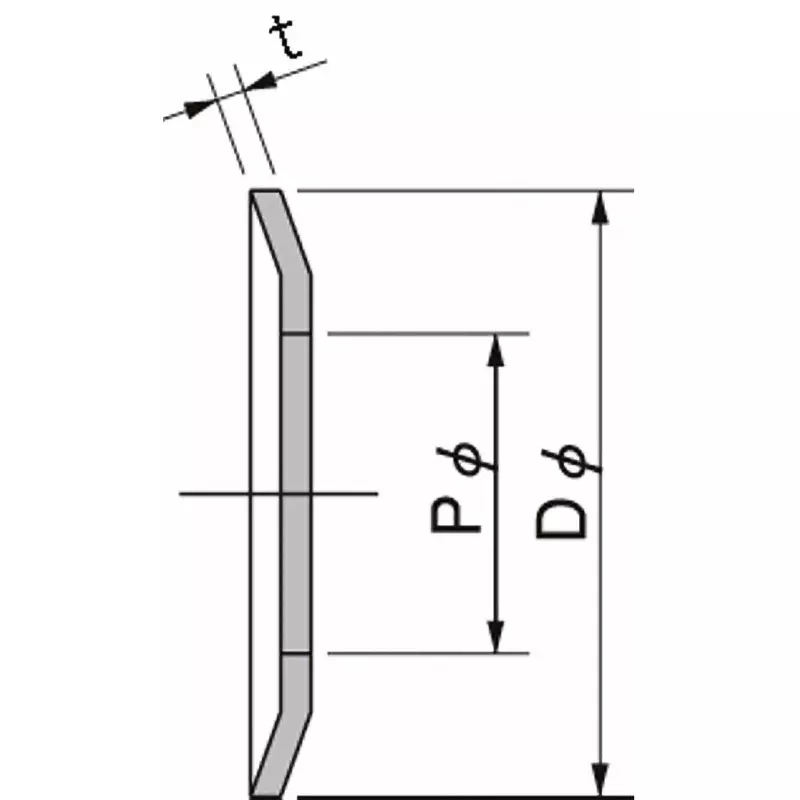

Applicable flange outer diameter D (mm) |
69 |
Applicable flange thickness t (mm) |
1.6 |
Tooth Type |
H Type |
Included Components |
Flange |
Cell Spacing (mm) |
12.7 mm |
Applicable flange inner diameter P (mm) |
50 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
