| Type of Product | Timing Pulley |
| Model No | P32-XL-037B |
| Material | Steel |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
P32-XL-037B |
Material |
Steel |
Country of Origin |
Japan |
No. of Teeth |
32 |

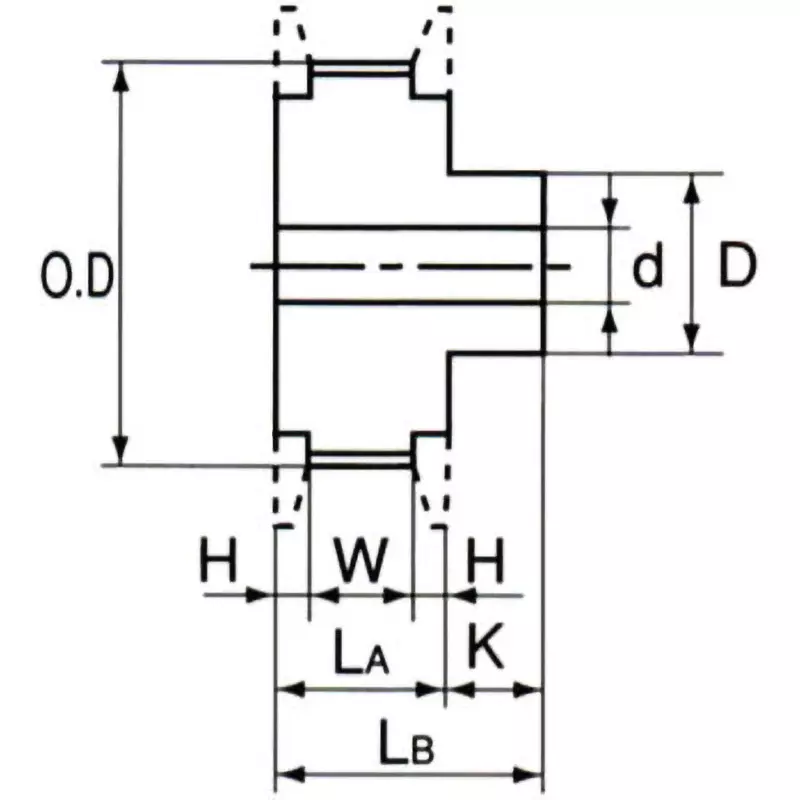

Dimension LB (mm) |
25 |
Type |
XL037 B Type |
Dimension LA (mm) |
15 |
Monotaro ID |
35267653 |
Pitch Diameter (Φmm) |
51.74 |
Dimension K |
10 mm |
Shaft Hole Diameter d (mm) |
10-26 mm |
Dimension D (Φmm) |
38 mm |
Suitable Flange |
F-105741 |
Suitable Belt Width (mm) |
9.5 |
Compatible Belt |
XL |

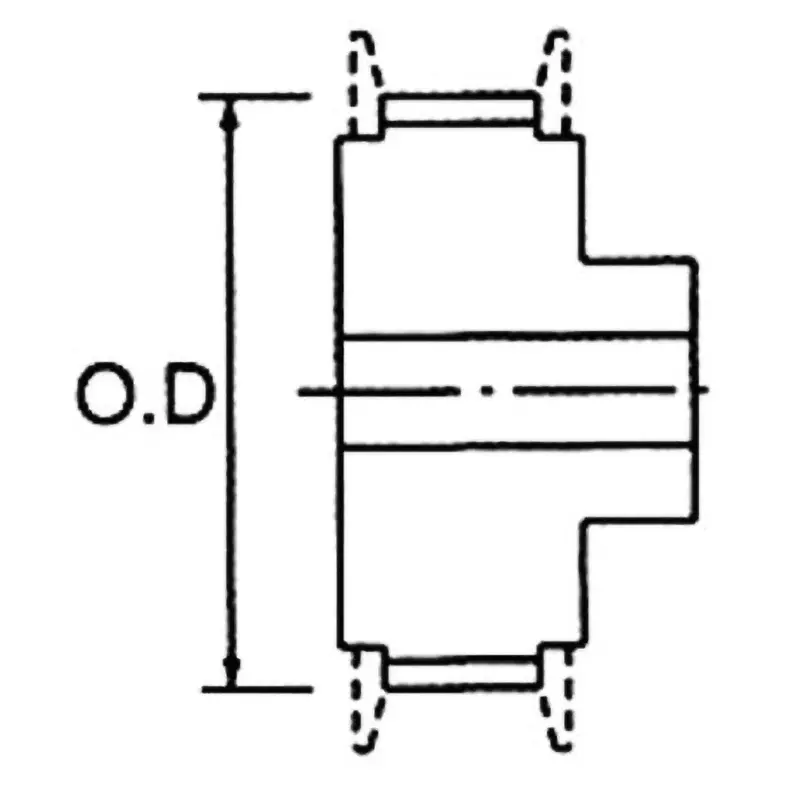

Outer Diameter |
51.24 mm |
Tooth width W (mm) |
11 |
Dimension H |
2 mm |
Pulley |
B Type |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
