Ships within 25 days
View
View
View
View
| Type of Product | Timing Pulley |
| Model No | 12XL037C |
| Material | Sintered Metal |
| Country of Origin | JAPAN |
Type of Product |
Timing Pulley |
Model No |
12XL037C |
Material |
Sintered Metal |
Country of Origin |
JAPAN |
No. of Teeth |
12 |
Monotaro ID |
47865632 |
Pitch Diameter (Φmm) |
19.4 |
Dimension K |
10 mm |
Shaft Hole Diameter d (mm) |
6-10 mm |

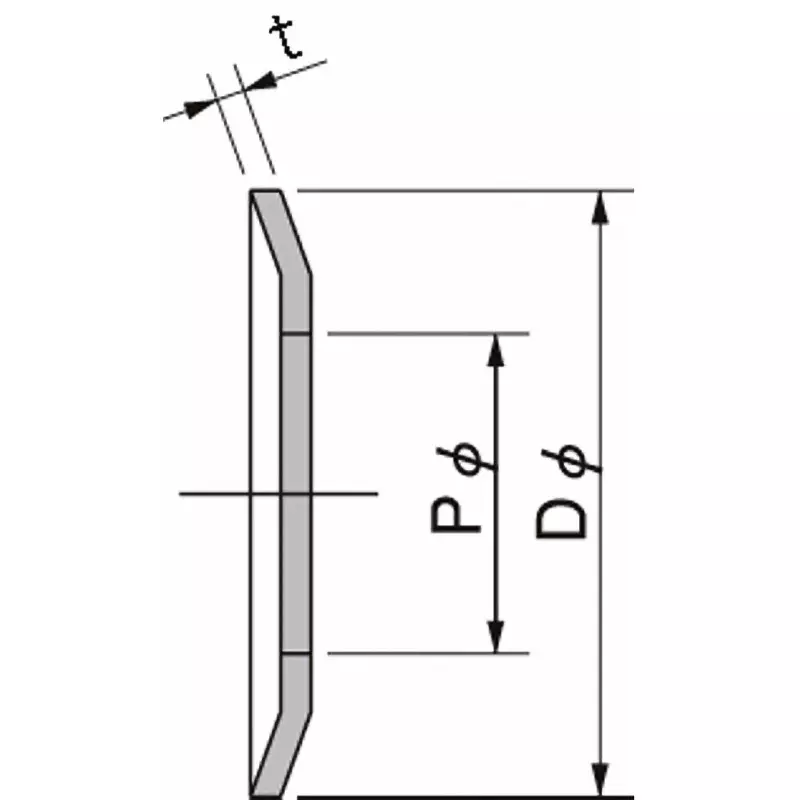

Suitable Flange |
F-102514 |
Dimension H |
2 mm |
Shape |
C Type |
Dimension W |
11 mm |
Dimension d |
25 mm |
Mass |
0.051 Kg |
Nominal Width |
37 (9.5 mm) |
Maximum shaft hole diameter d (Φmm) |
10 |
Dimension LC |
23 mm |
Min. Shaft Hole Diameter d |
6 mm |
Applicable flange outer diameter D (mm) |
25 |
Tooth Type |
XL Type |
Included Components |
Flange |
Cell Spacing (mm) |
5.08 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
