| Type of Product | Timing Pulley |
| Model No | P50H100W |
| Material | Gray Cast Iron |
| Country of Origin | Japan |
Type of Product |
Timing Pulley |
Model No |
P50H100W |
Material |
Gray Cast Iron |
Country of Origin |
Japan |
No. of Teeth |
50 |
Type |
H Type |

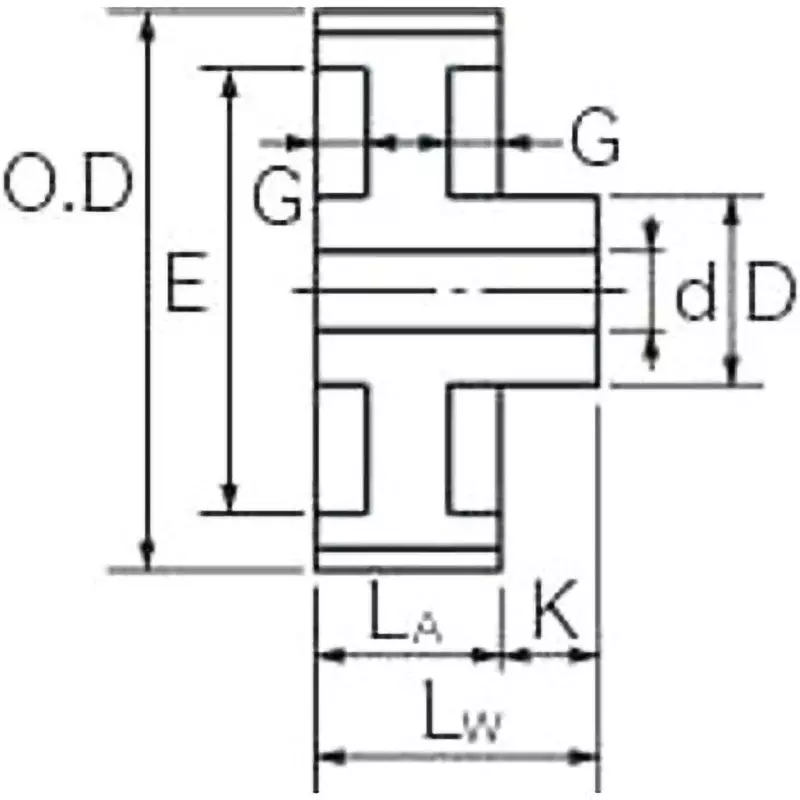

Dimension LA (mm) |
33 |
Monotaro ID |
36064341 |
Pitch Diameter (Φmm) |
202.13 |
Dimension K |
20 mm |
Dimension D (Φmm) |
88 mm |
Dimension G |
11 mm |
Dimension E |
179 mm |
Shape |
W Type |
Mass |
4.96 Kg |
Nominal Width |
100 (25.4 mm) |
Maximum shaft hole diameter d (Φmm) |
52 |
Dimension LW |
53 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
