| Type of Product | Timing Pulley |
| Model No | 22H200A |
| Material | Steel |
| Country of Origin | JAPAN |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
22H200A |
Material |
Steel |
Country of Origin |
JAPAN |
No. of Teeth |
22 |

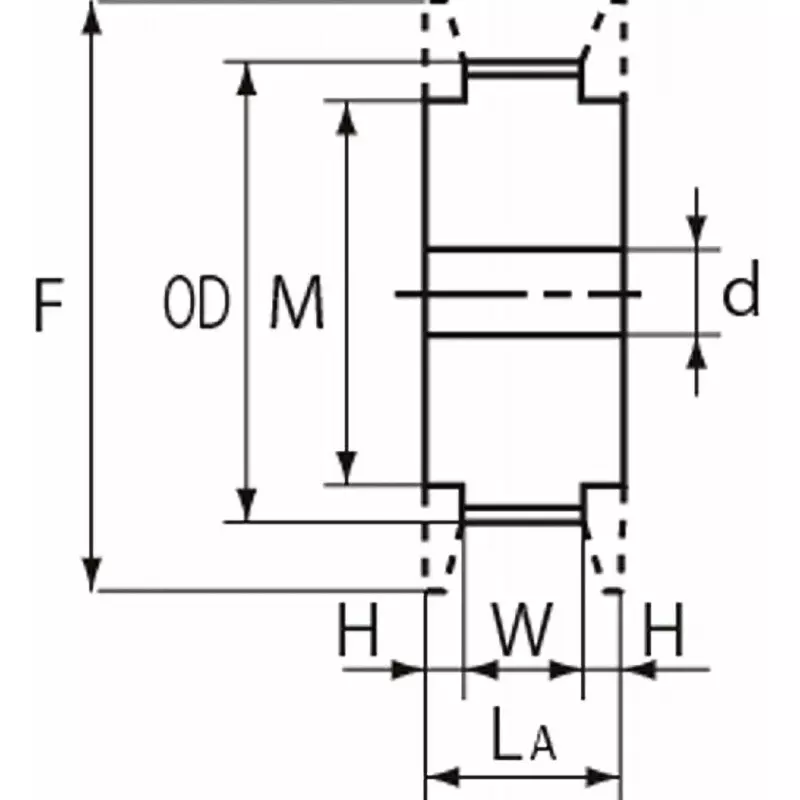

Dimension LA (mm) |
59 |
Monotaro ID |
47879203 |
Pitch Diameter (Φmm) |
88.94 |
Shaft Hole Diameter d (mm) |
20-46 mm |
Suitable Flange |
F-169375 |
Dimension H |
2.5 mm |
Shape |
A Type |
Dimension W |
54 mm |
Mass |
2.44 Kg |
Nominal Width |
200 (50.8 mm) |
Maximum shaft hole diameter d (Φmm) |
46 |
Min. Shaft Hole Diameter d |
20 mm |

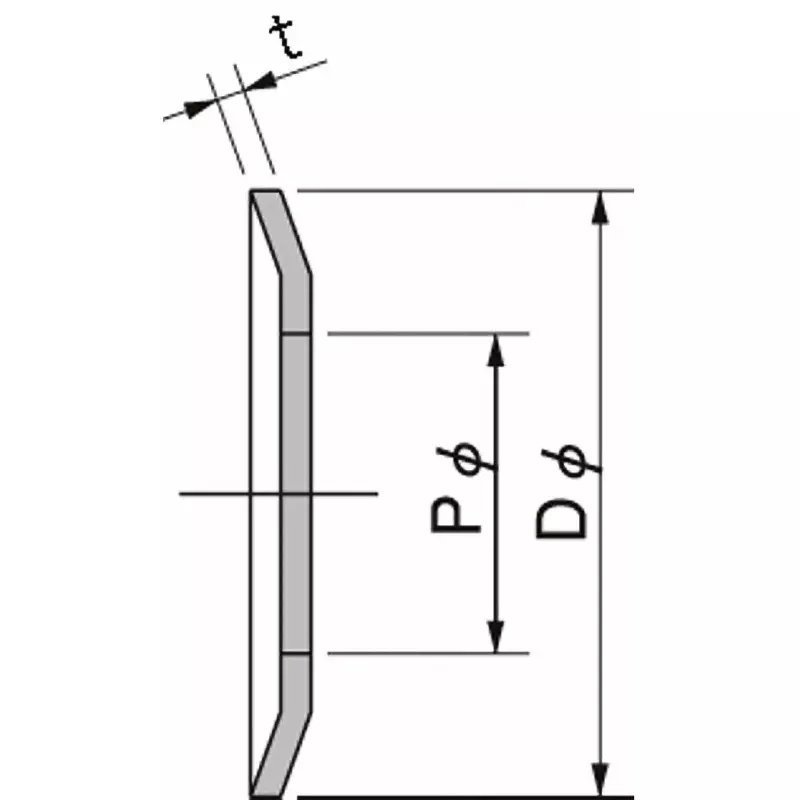

Applicable flange outer diameter D (mm) |
93 |
Applicable flange thickness t (mm) |
1.6 |
Tooth Type |
H Type |
Included Components |
Flange |
Cell Spacing (mm) |
12.7 mm |
Applicable flange inner diameter P (mm) |
75 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
