| Type of Product | Timing Pulley |
| Model No | 24H100B |
| Material | Steel |
| Country of Origin | JAPAN |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
24H100B |
Material |
Steel |
Country of Origin |
JAPAN |
No. of Teeth |
24 |

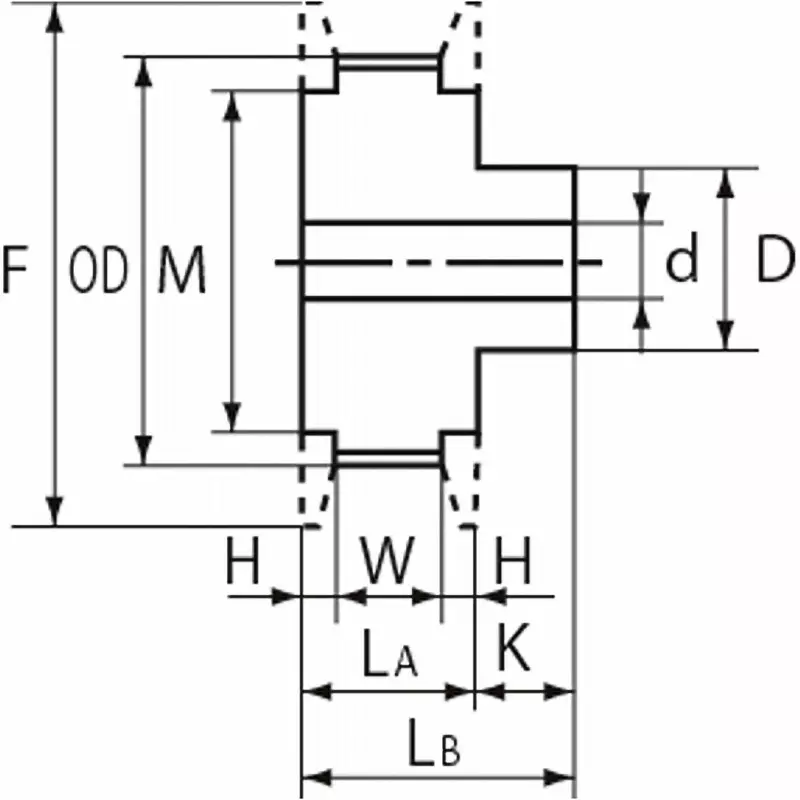

Dimension LB (mm) |
48 |
Dimension LA (mm) |
33 |
Monotaro ID |
47880497 |
Pitch Diameter (Φmm) |
97.02 |
Dimension K |
15 mm |
Shaft Hole Diameter d (mm) |
20-38 mm |

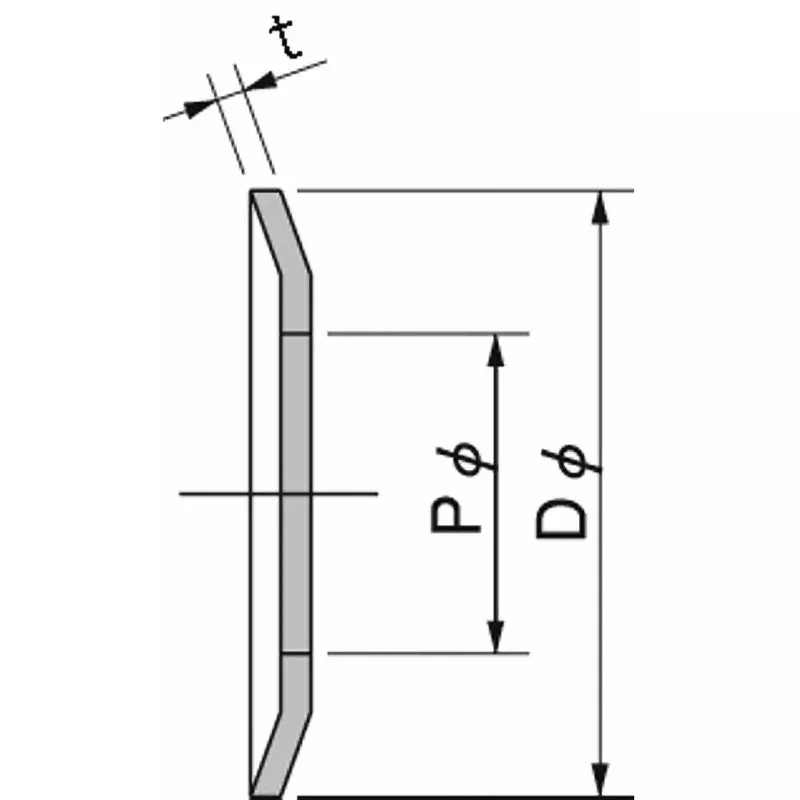

Suitable Flange |
F-1610584 |
Dimension H |
2.5 mm |
Shape |
B Type |
Dimension W |
28 mm |
Dimension d |
62 mm |
Mass |
1.97 Kg |
Nominal Width |
100 (25.4 mm) |
Maximum shaft hole diameter d (Φmm) |
38 |
Min. Shaft Hole Diameter d |
20 mm |
Tooth Type |
H Type |
Included Components |
Flange |
Cell Spacing (mm) |
12.7 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
