| Type of Product | Timing Pulley |
| Model No | 30XL037B |
| Material | Sintered Metal |
| Country of Origin | JAPAN |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
30XL037B |
Material |
Sintered Metal |
Country of Origin |
JAPAN |
No. of Teeth |
30 |

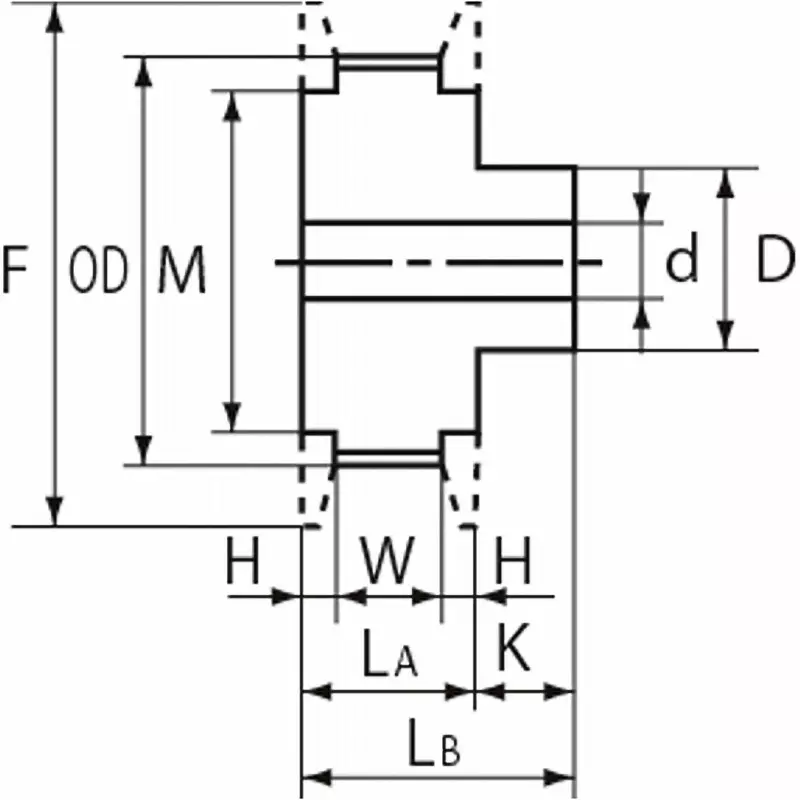

Dimension LB (mm) |
23 |
Dimension LA (mm) |
15 |
Monotaro ID |
47890281 |
Pitch Diameter (Φmm) |
48.51 |
Dimension K |
8 mm |
Shaft Hole Diameter d (mm) |
10-24 mm |

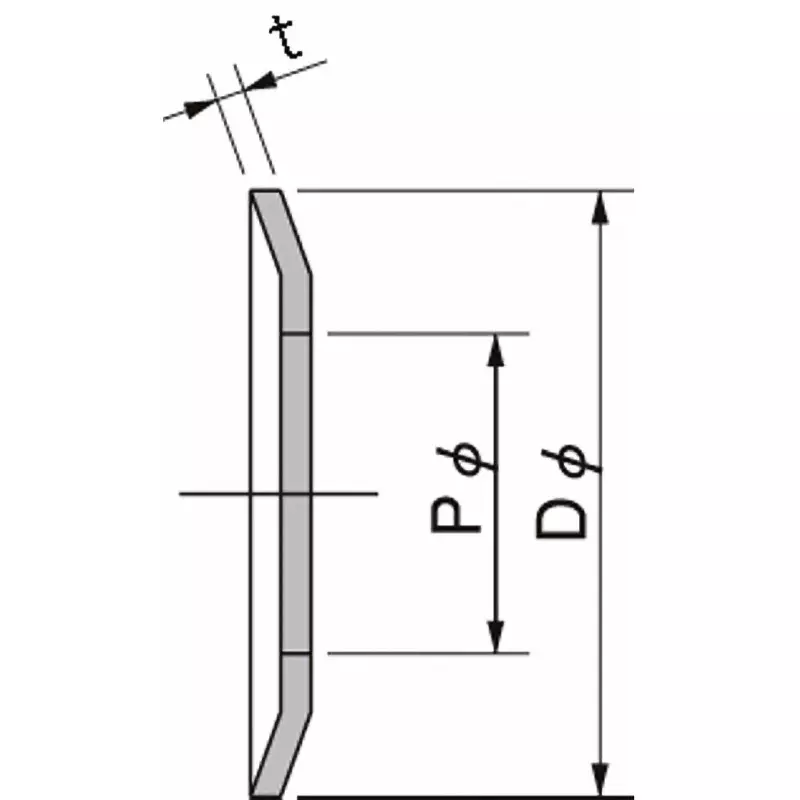

Suitable Flange |
F-105539 |
Dimension H |
2 mm |
Shape |
B Type |
Dimension W |
11 mm |
Dimension d |
33 mm |
Mass |
0.208 Kg |
Nominal Width |
37 (9.5 mm) |
Maximum shaft hole diameter d (Φmm) |
24 |
Min. Shaft Hole Diameter d |
10 mm |
Tooth Type |
XL Type |
Included Components |
Flange |
Cell Spacing (mm) |
5.08 mm |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
