Ships within 25 days
View
View
View
View
| Type of Product | Timing Pulley |
| Model No | S3-60S8M0250BF-48T3K |
| Material | Steel |
| Country of Origin | Japan |
Type of Product |
Timing Pulley |
Model No |
S3-60S8M0250BF-48T3K |
Material |
Steel |
Country of Origin |
Japan |
No. of Teeth |
60 |

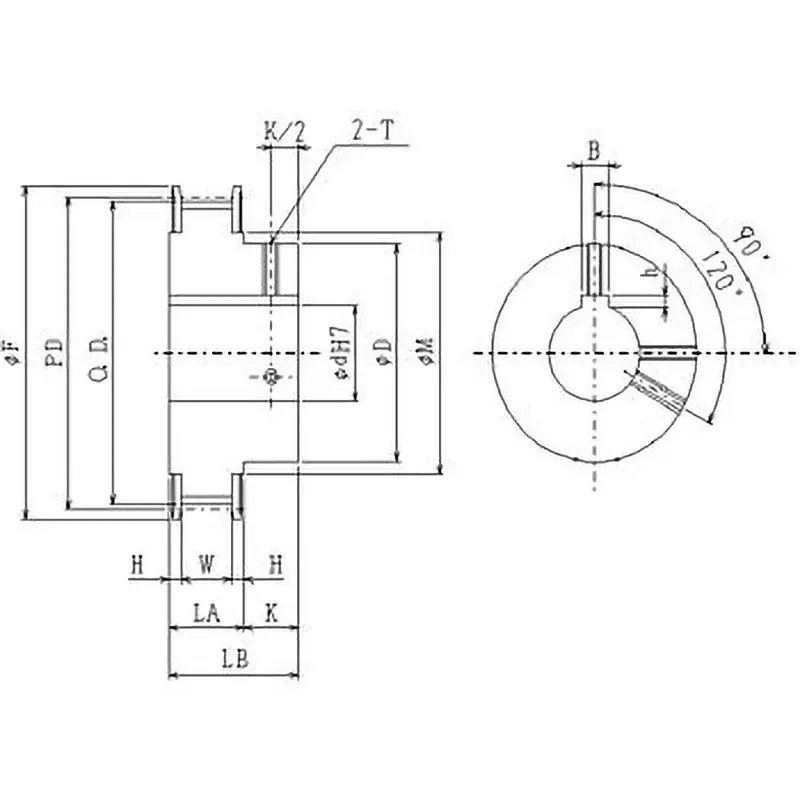

Dimension LB (mm) |
55 mm |
Dimension LA (mm) |
35 mm |
Monotaro ID |
58563181 |
Dimension K |
20 mm |
Compatible Belt |
S8M |
Dimension H |
3.5 mm |
Surface Treatment |
Electroless Nickel Plating |
Finish Processing |
2 Taps (On Key / 120° Position) |
Dimensions PD (mm) |
152.79 mm |
Keyway height h (mm) |
3.8 mm |
Shaft Hole Diameter (mm) |
48 mm |
Shape |
With Flange |
Dimension OD (mm) |
151.42 mm |
Dimension M |
141 mm |
Dimension W |
28 mm |
Keyway width B (mm) |
14 mm |
Dimension F |
161 mm |
Dimension d |
100 mm |
Nominal Width (mm) |
25 mm |
Series |
Star Quick |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
