| Type of Product | Timing Pulley |
| Model No | S3-32S5M0150BF-12T3K |
| Material | Steel |
| Country of Origin | Japan |
Type of Product |
Timing Pulley |
Model No |
S3-32S5M0150BF-12T3K |
Material |
Steel |
Country of Origin |
Japan |

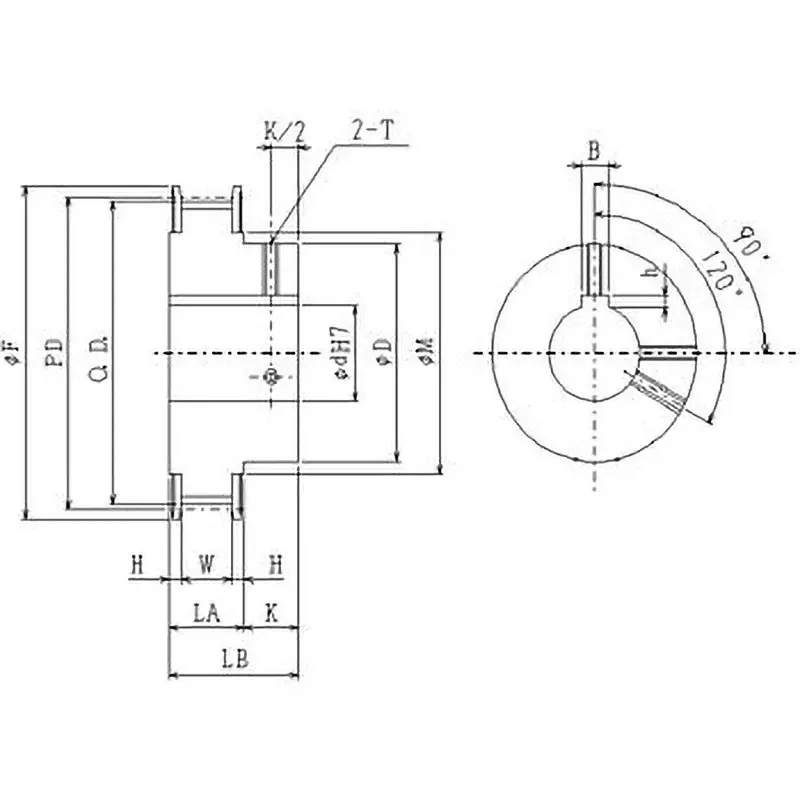

Dimension LB (mm) |
34 mm |
Dimension LA (mm) |
22 mm |
Monotaro ID |
58501737 |
Dimension K |
12 mm |
Compatible Belt |
S5M |
Dimension H |
2.5 mm |
Surface Treatment |
Electroless Nickel Plating |
Finish Processing |
2 Taps (On Key/120° Position) |
Dimensions PD (mm) |
50.93 mm |
Keyway height h (mm) |
1.8 mm |
Shaft Hole Diameter (mm) |
12 mm |
Shape |
With Flange |
Dimension OD (mm) |
49.97 mm |
Dimension M |
41 mm |
Dimension W |
17 mm |
Keyway width B (mm) |
4 mm |
Dimension F |
54 mm |
Dimension d |
38 mm |
Nominal Width (mm) |
15 mm |
Series |
Star Quick |
Product Type |
Timing Pulley |
No.of Teeth |
32 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
