| Type of Product | Timing Pulley |
| Model No | S1-21S8M0400BF-15T3K |
| Material | Steel |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Timing Pulley |
Model No |
S1-21S8M0400BF-15T3K |
Material |
Steel |
Country of Origin |
Japan |

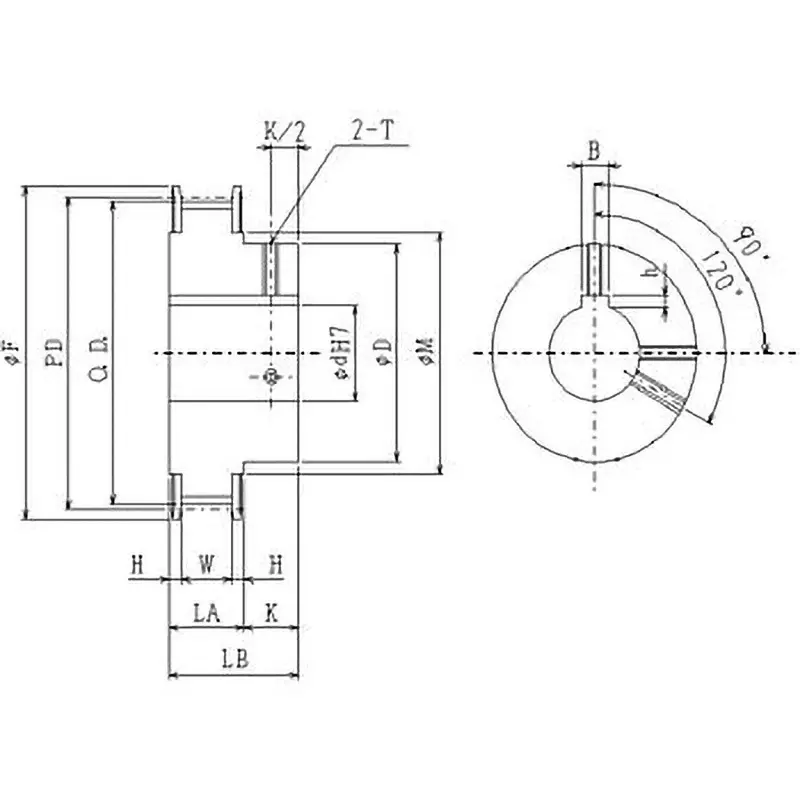

Dimension LB (mm) |
66 mm |
Dimension LA (mm) |
51 mm |
Monotaro ID |
58538453 |
Dimension K |
15 mm |
Compatible Belt |
S8M |
Dimension H |
3.5 mm |
Surface Treatment |
Untreated |
Finish Processing |
2 Taps (On Key/120° Position) |
Dimensions PD (mm) |
53.48 mm |
Keyway height h (mm) |
2.3 mm |
Shaft Hole Diameter (mm) |
15 mm |
Shape |
With Flange |
Dimension OD (mm) |
52.1 mm |
Dimension M |
44 mm |
Dimension W |
44 mm |
Keyway width B (mm) |
5 mm |
Dimension F |
62 mm |
Dimension d |
40 mm |
Nominal Width (mm) |
40 mm |
Series |
Star Quick |
Product Type |
Timing Pulley |
No.of Teeth |
21 |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
