| Type of Product | Timing Pulley |
| Model No | S1-38S8M0150BF-24T3K |
| Material | Steel |
| Country of Origin | Japan |
Type of Product |
Timing Pulley |
Model No |
S1-38S8M0150BF-24T3K |
Material |
Steel |
Country of Origin |
Japan |
No. of Teeth |
38 |

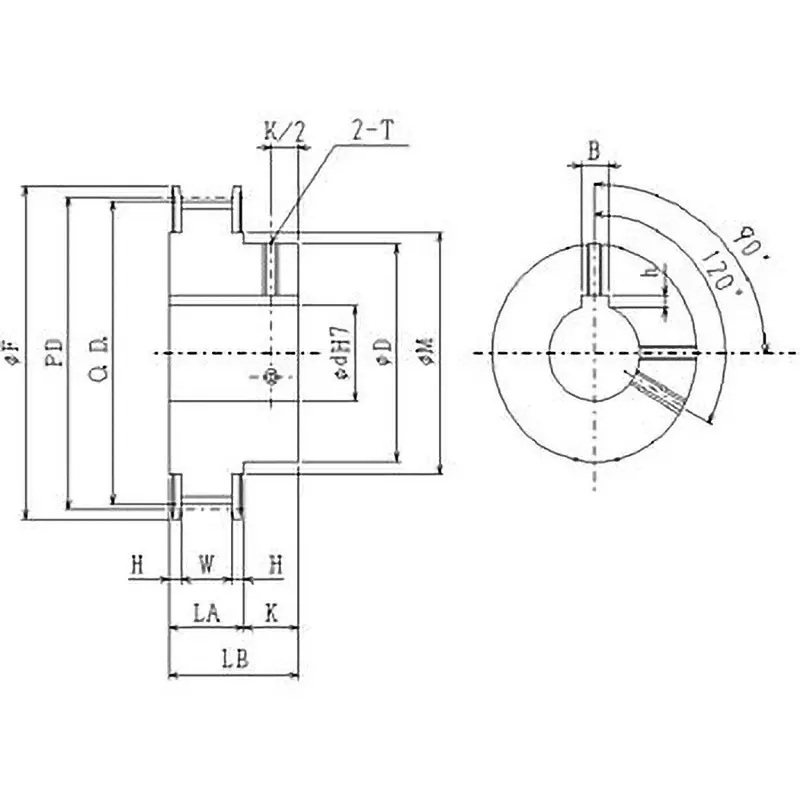

Dimension LB (mm) |
39 mm |
Dimension LA (mm) |
24 mm |
Monotaro ID |
58542705 |
Dimension K |
15 mm |
Compatible Belt |
S8M |
Dimension H |
3.5 mm |
Surface Treatment |
Untreated |
Finish Processing |
2 Taps (On Key / 120° Position) |
Dimensions PD (mm) |
96.77 mm |
Keyway height h (mm) |
3.3 mm |
Shaft Hole Diameter (mm) |
24 mm |
Shape |
With Flange |
Dimension OD (mm) |
95.39 mm |
Dimension M |
85 mm |
Dimension W |
17 mm |
Keyway width B (mm) |
8 mm |
Dimension F |
105 mm |
Dimension d |
80 mm |
Nominal Width (mm) |
15 mm |
Series |
Star Quick |
Name of Manufacturer/Packer/Importer |
Mitsuboshi belting Ltd |
Import Country |
Direct Import from Japan |
