| Phase | Three Phase |
| Model No | SD 9612 |
| Type of Product | Display Instrument |
| Current Range | Adjustable Overload: 0–30A, Adjustable Dry Run: 0–30A |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Phase |
Three Phase |
Model No |
SD 9612 |
Type of Product |
Display Instrument |
Current Range |
Adjustable Overload: 0–30A, Adjustable Dry Run: 0–30A |
Country of Origin |
India |
Display |
3 Digital Displays – Voltage, Current, Adjustable Overload Trip Value |
Dimension |
96x96 mm |
Package Contains |
1 × Digital Star Delta Instrument (with water level controller), 3 × 50A CT, 2 × Mounting Clamps |
Timer |
Auto/Manual Mode, Auto Reset, Auto Bypass, Auto Switch, Cyclic Timer (0–999 min), Delay Off Timer (0–999 min), On/Off Delay Timer (0–999 min), Auto Switch Timer (0–999 sec) |
Name of Manufacturer/Packer/Importer |
Mivan Technologies |
Input Voltage |
415 VAC, (R, Y, B) |
Output Voltage |

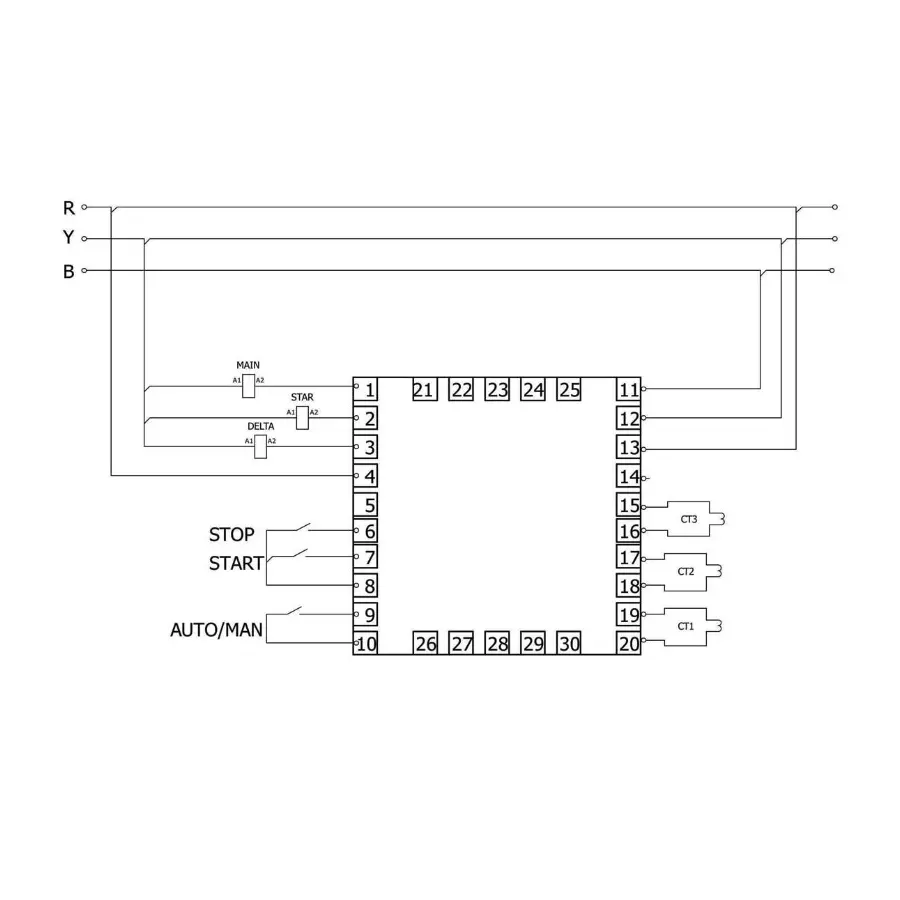

Potential Free Relay Outputs (3 Relays: Main, Star, Delta) |
Protection Features |
HV/LV Protection, Overload, Dry Run, Short Circuit, Phase Failure, Phase Interchange, Current & Voltage Unbalance, Protection Bypass |
Technology |
Microcontroller-based design with error message display |
Sensing Element |
304 Stainless Steel Sensors – Rust free, long life, electrolysis free |
