| Model No | EA940DF-112 |
| Color | Cable bushing: blACk |
| Type of Product | Push Button Switch |
| Shape | Rainproof type |
Model No |
EA940DF-112 |
Color |
Cable bushing: blACk |
Type of Product |
Push Button Switch |
Shape |
Rainproof type |
Protection Class |
IP65 |
Material |
Case tightening screw: Stainless steel (± screw), Cable bushing: Synthetic rubber |
Type |
COB282 |
No. of Buttons |
4 points (2 sets) |
Mass (g) |
460 |
Monotaro ID |
76583947 |

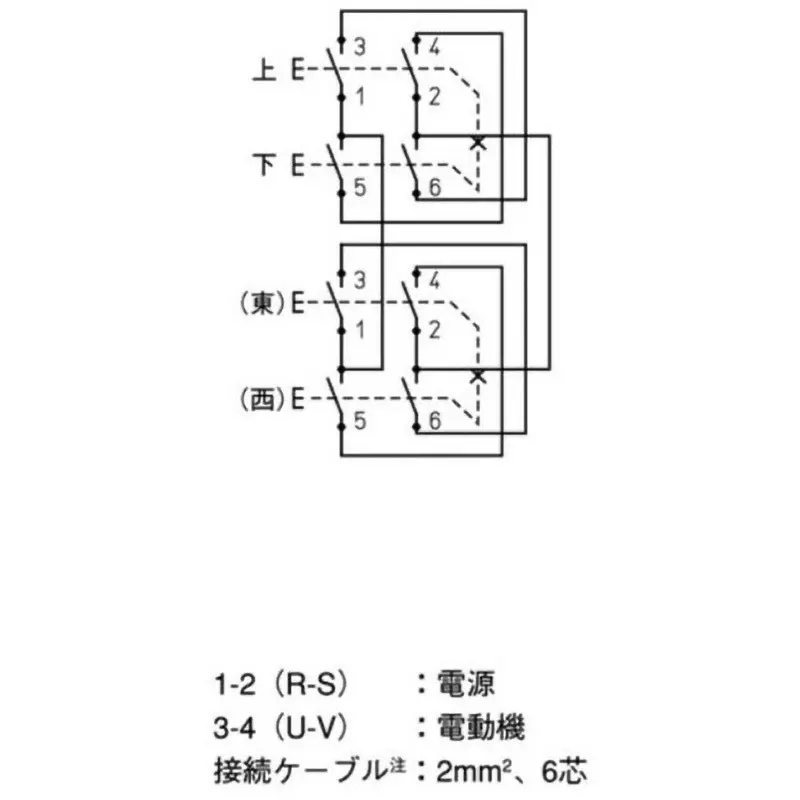

Contact Configuration |
2a-2a-2a-2a |
Applicable Voltage (V) |
3Φ200/200, 3Φ400/440 |
Rated Carrying Current (A) |
15 |
Country of Origin |
Japan |
Case Material |
High impact ABS resin |
Rated Voltage (V) |
AC 500 |
Applicable Standard |
JIS C 8201-3, JIS C 0920, Electrical Appliance and Material Safety Act PSE compliant |
Case Color |
Orange |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Esco |
Mounting Direction |
Install a cable that is wired with an appropriate cabtyre cable so that the cable entry is on the top. |
Insulation Resistance (MOhm) |
100 or more (DC 500 V megger) |
Specifications |
Compatible cable diameter: Φ10.3 to Φ13.5 mm (cab tire cable (VCT/VCTF wire) 2.0 mm² x 6 cores), Included dials: Up, Down, East, West, South, North |
Outer Dimensions (mm) |
L: 180, L1 (bushing part): 90, L2: 62.5, W: 65, W1: 78 |
Connecting Terminal |
M4 screw (crimp terminal type) |
