| Model No | AH164-SLY11E3 |
| Type of Product | Push Button Switch |
| Vibration Resistance | Resonance test: double amplitude 0.1 mm, frequency 10-55 Hz, constant vibration endurance test: double amplitude 3.0 mm, frequency 16.7 Hz |
| Protection Class | IP40 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
AH164-SLY11E3 |
Type of Product |
Push Button Switch |
Vibration Resistance |
Resonance test: double amplitude 0.1 mm, frequency 10-55 Hz, constant vibration endurance test: double amplitude 3.0 mm, frequency 16.7 Hz |
Protection Class |
IP40 |
Type |
Illuminated |
Monotaro ID |
8507773 |
Terminal Shape |
Solder terminal / tab terminal |
Button Shape |
Square (flat) |
Contact Configuration |
1A1B |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
16 |
Mechanical Durability |
1 million times |
Relative Humidity |
45 to 85% RH (at -5 to 40°C) (no freezing or condensation) |
Rated Insulation Voltage (V) |
AC/DC 250 |
Electrical Durability |
100,000 times (AC220V 0.7A) |
Light Source |
LED |
Applicable Voltage (V) |
DC24 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Transformer |
None |
Name of Manufacturer/Packer/Importer |
Fuji Electric Co., Ltd. |
Operation Ambient Temperature (°C) |
-20 to 55 (no freezing or condensation) |
Insulation Resistance (MOhm) |
over 100 |
Specifications |
Closed end type |
Name |

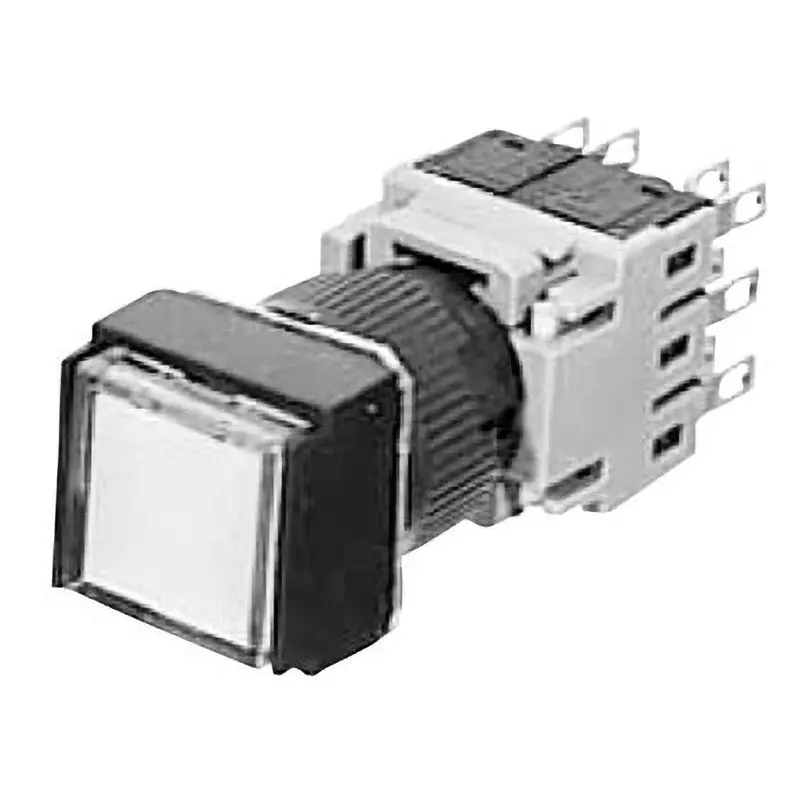

Illuminated push button switch |
Shock Resistance (m/s²) |
Malfunction: 100, Durability: 500 |
