| Model No | AR22F0S-11G |

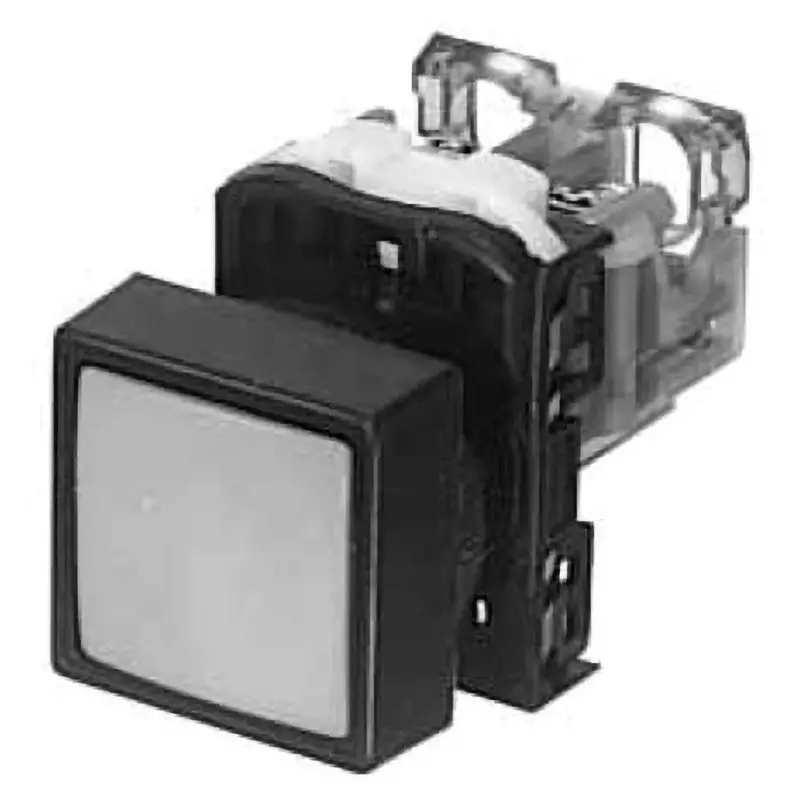

| Type of Product | Push Button Switch |
| Protection Class | IP65 |
| Material | Round ring: resin |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
AR22F0S-11G |
Type of Product |
Push Button Switch |
Protection Class |
IP65 |
Material |
Round ring: resin |
Type |
Non-Illuminated Type |
Terminal Screw |
M3.5 plus/minus screw with square washer (self-lifting type) |
Monotaro ID |
8508945 |
Storage Temperature |
-40 to +80℃ |
Terminal Shape |
Screw terminal |
Button Shape |
Square (flat) |
Button Color |
Green |
Contact Configuration |
1A1B |
Frame |
Corner frame |
Operation Type |
Momentary |
Short Circuit Protection Device |
Fuse 15A |
Mounting Hole Diameter (Φmm) |
22.3/25.5 |
Conditional Short-Circuit Current |
1000 Amp |
Mechanical Durability |
5 million times or more |
Relative Humidity |
45-85% RH (at -5-+ 40°C) (with no freezing or condensation) |
Rated Insulation Voltage (V) |
AC/DC 600 |
Electrical Durability |
More than 500,000 times with AC220V6A More than 1 million times with AC220V3A |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fuji Electric Co., Ltd. |
Operation Ambient Temperature (°C) |
-20-+70 (no freezing or condensation) |
Insulation Resistance (MOhm) |
100 or more (at 500 VDC megger) |
