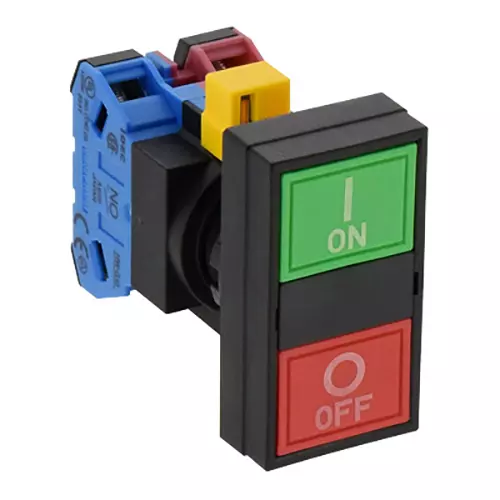

| Model No | HW7D-B121001GR |
| Type of Product | Push Button Switch |
| Protection Class | IP40 |
| Type | Non-Illuminated |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
HW7D-B121001GR |
Type of Product |
Push Button Switch |
Protection Class |
IP40 |
Type |
Non-Illuminated |
Series |
HW |
Ambient Humidity to Use |
45% - 85% (With No Condensation) |
Monotaro ID |
60141812 |
Storage Temperature |
-40 to 80℃ (No Icing) |
Terminal Shape |
Screw Terminal |
Button Shape |
Square (Flat) + Square (Projected) |
Button Color |
Upper Side: Green / Lower Side: Red |
Contact Configuration |
Upper: 1a / Lower: 1b |
Operation Type |
Momentary |
Operation Ambient Temperature |
-25 to 60℃ (No Icing) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Mounting Hole Diameter |
Φ22 mm |
With or Without Indication Lamp |
None |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
