Invento PCB Mount Tactile Push Button Switch Self Latching Locking DPDT 6-Pin DIP 7x7x16 mm (LxBxH), ISC 1516-4 (Pack of 10 Pcs)

Share

Ships within 6 days

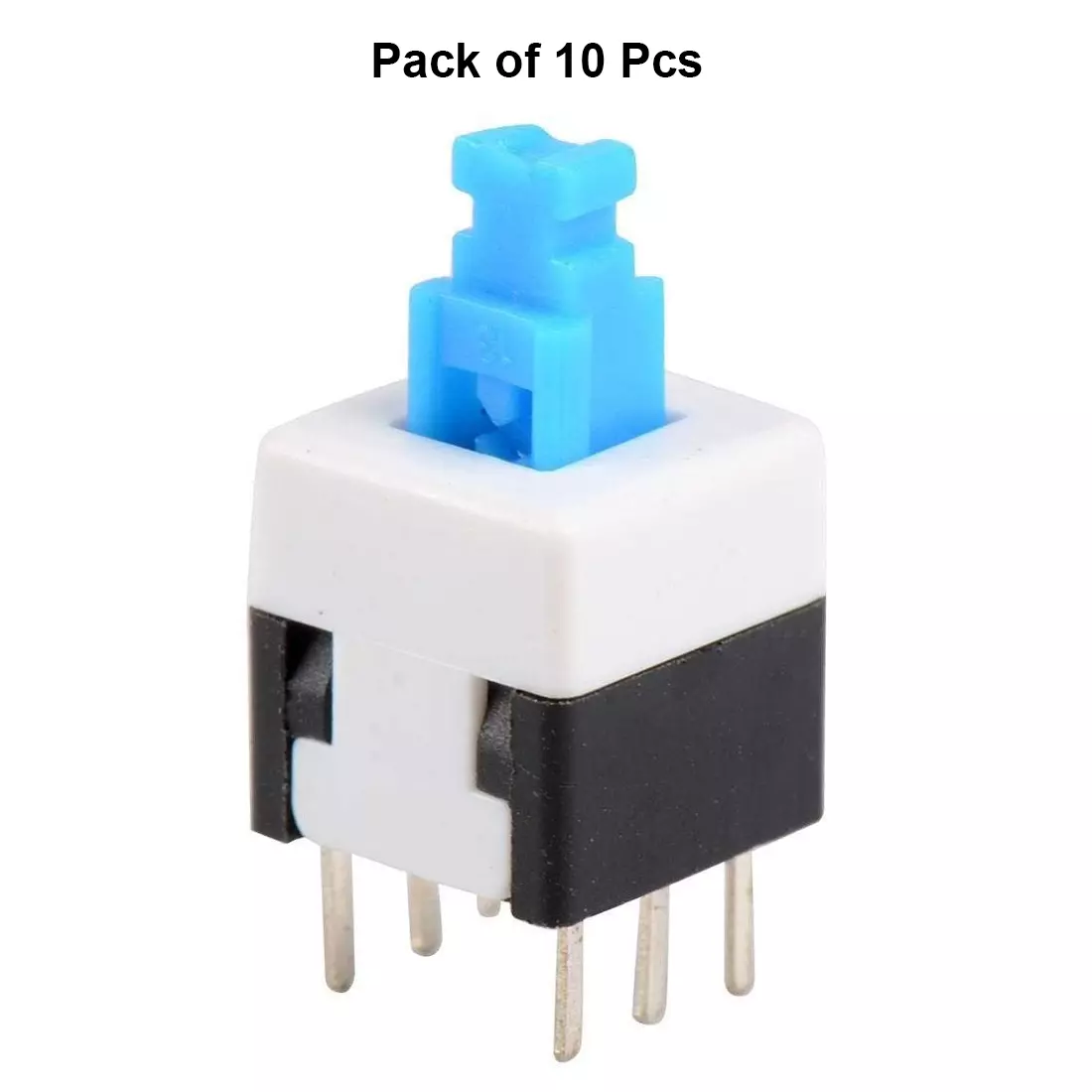

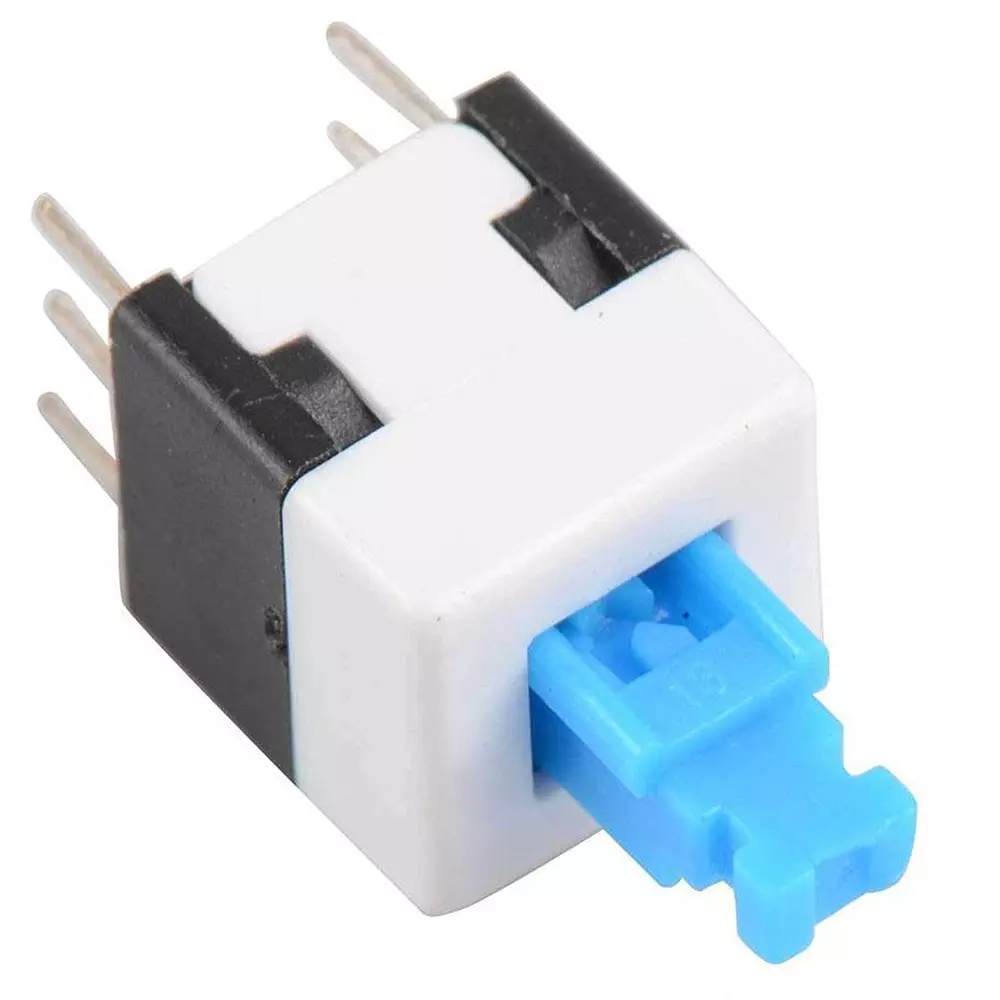

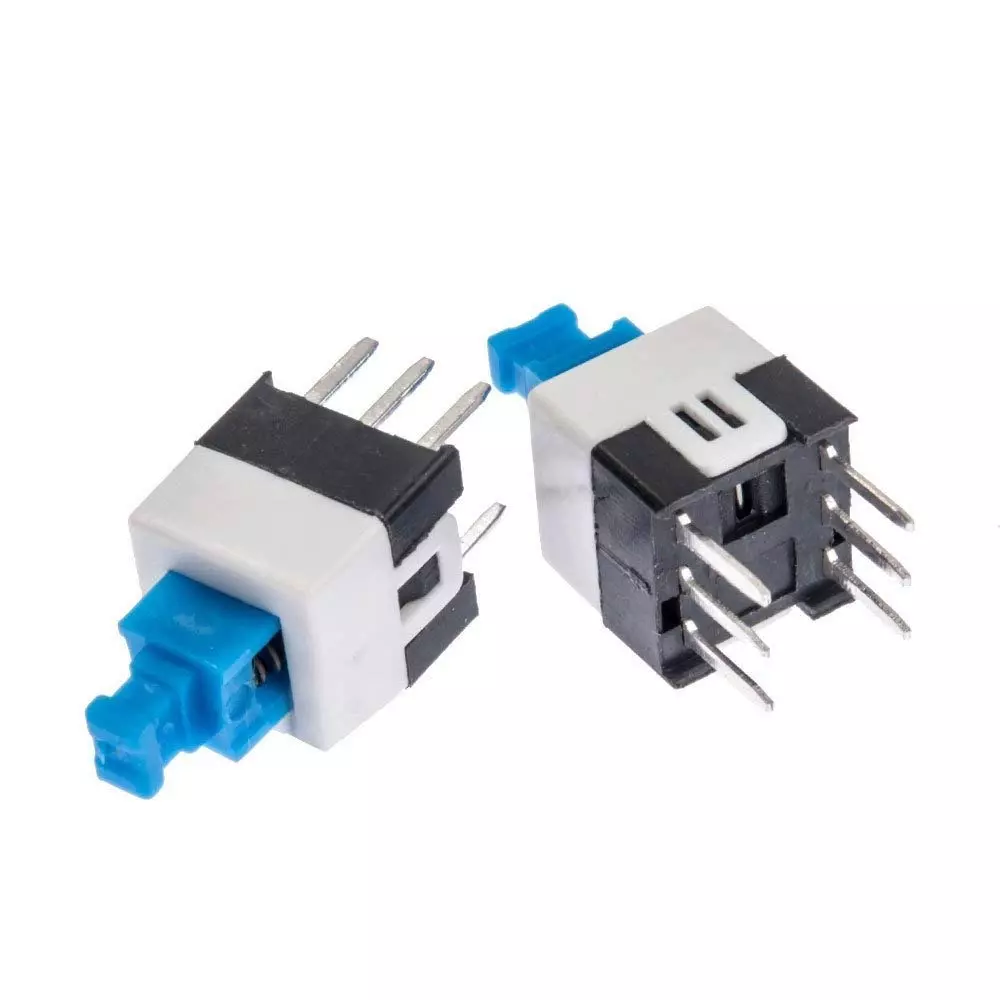

Invento PCB Mount Tactile Push Button Switch Self Latching Locking DPDT 6-Pin DIP 7x7x16 mm (LxBxH), ISC 1516-4 (Pack of 10 Pcs)

invento-pcb-mount-tactile-push-button-switch-self-latching-locking-dpdt-6-pin-dip-10-pieces-7-x-7-mm-blue

invento-pcb-mount-tactile-push-button-switch-self-latching-locking-dpdt-6-pin-dip-10-pieces-7-x-7-mm-blue

invento-pcb-mount-tactile-push-button-switch-self-latching-locking-dpdt-6-pin-dip-10-pieces-7-x-7-mm-blue

invento-pcb-mount-tactile-push-button-switch-self-latching-locking-dpdt-6-pin-dip-10-pieces-7-x-7-mm-blue

invento-pcb-mount-tactile-push-button-switch-self-latching-locking-dpdt-6-pin-dip-10-pieces-7-x-7-mm-blue

invento-pcb-mount-tactile-push-button-switch-self-latching-locking-dpdt-6-pin-dip-10-pieces-7-x-7-mm-blue

Invento PCB Mount Tactile Push Button Switch Self Latching Locking DPDT 6-Pin DIP 7x7x16 mm (LxBxH), ISC 1516-4 (Pack of 10 Pcs)

Visit the Invento Store

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹4,000

View

Features

Type of Product	Tactile Push Button Switch
Insulation Resistance	>=100 mΩ
Contact Resistance	=0.02 Ω
Series	ISC 1516-4

More Invento Push Button Switches products More Push Button Switches products

i

7 Days Return Policy

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

description

Type of Product	Tactile Push Button Switch
Insulation Resistance	>=100 mΩ
Contact Resistance	=0.02 Ω
Series	ISC 1516-4

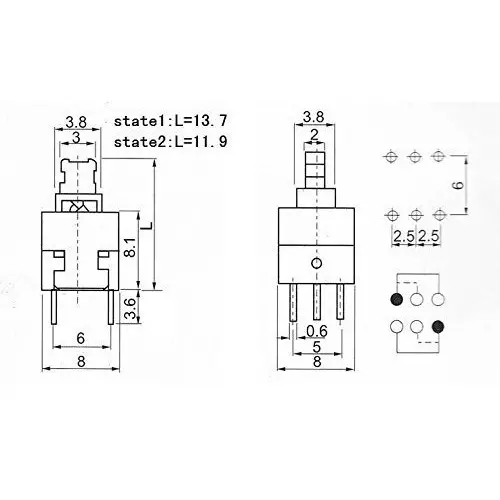

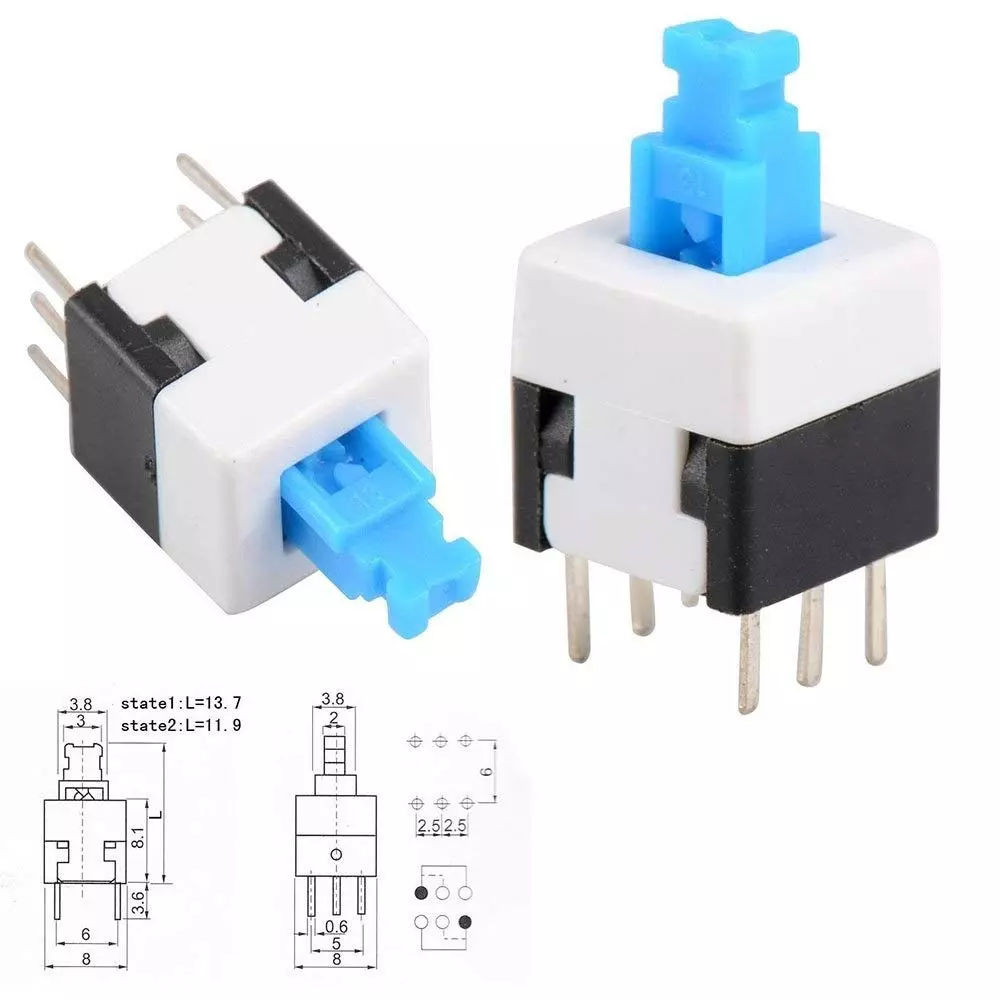

Size	7x7x16 mm (LxBxH)
Package Contains	10x Tactile Push Button Switch
Voltage	60 V
Withstand Voltage	AC250 V (50 Hz)/min
Temperature	-40 to 70°C
Country of Origin	India
Mounting Type	PCB Mount
Circuit Type	6-Way
Pack of	10 Pcs
Name of Manufacturer/Packer/Importer	INVENTO SALES CORPORATION
No. Of Pin	6-Pin
Rated Load	0.3 A 60 V AC /1.5 A 25 V AC
Actuation Force	100-350 g
