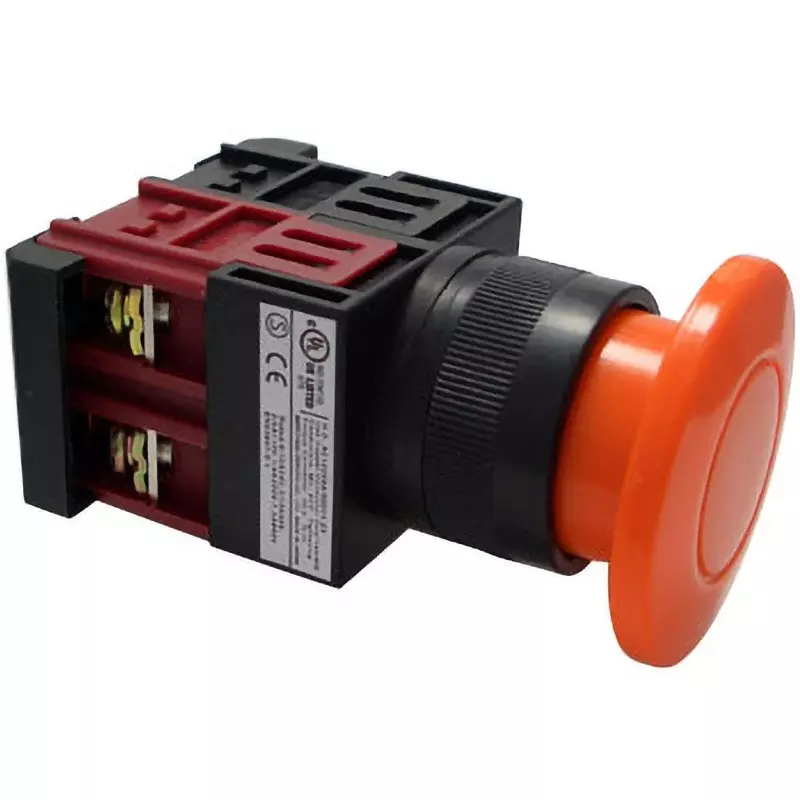

| Model No | A22PDE22O |
| Type of Product | Mushroom Switch |
| Shape | Middle mushroom (resin ring) |
| Protection Class | IP65 oil-proof type |
Model No |
A22PDE22O |
Type of Product |
Mushroom Switch |
Shape |
Middle mushroom (resin ring) |
Protection Class |
IP65 oil-proof type |
Type |
Non-illuminated type |
Monotaro ID |
37838902 |
Terminal Shape |
Screw terminal |
Button Shape |
Mushroom (mushroom shape) |
Button Color |
Color |
Contact Configuration |
2a2b |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
22.3(+0.4 to 0) |
Mechanical Durability |
5 million times |
Relative Humidity |
45 to 85% |
Rated Insulation Voltage (V) |
AC/DC 600 |
Electrical Durability |
1 million times |
Country of Origin |
Japan |
Operating Force (N) |
Approx. 11 (Contact configuration 1a1b) |
Rated Operating Current (A) |
AC-15 class (inductive load): 24V / 10, 48V / 10, 110V / 6, 220V / 4, 440V / 1.5 DC-13 class (inductive load): 24V / 6, 48V / 2, 110V / 0.7, 220V /0.3 DC-12 class (resistive load): 24V / 6, 48V / 3, 110V / 2, 220V / 1 |
Temperature Rise |
40K or less |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Maruyasu Electric Co., Ltd. |
Operation Ambient Temperature (°C) |
-20 to 55 |
Insulation Resistance (MOhm) |
100 mohm or more (500 V) |
Contact Resistance (ohm) |
30 mΩ or less |
Cold Resistance |
-40 to 70℃ |
Heat Resistant Temperature (℃) |
-40 to 70 |
