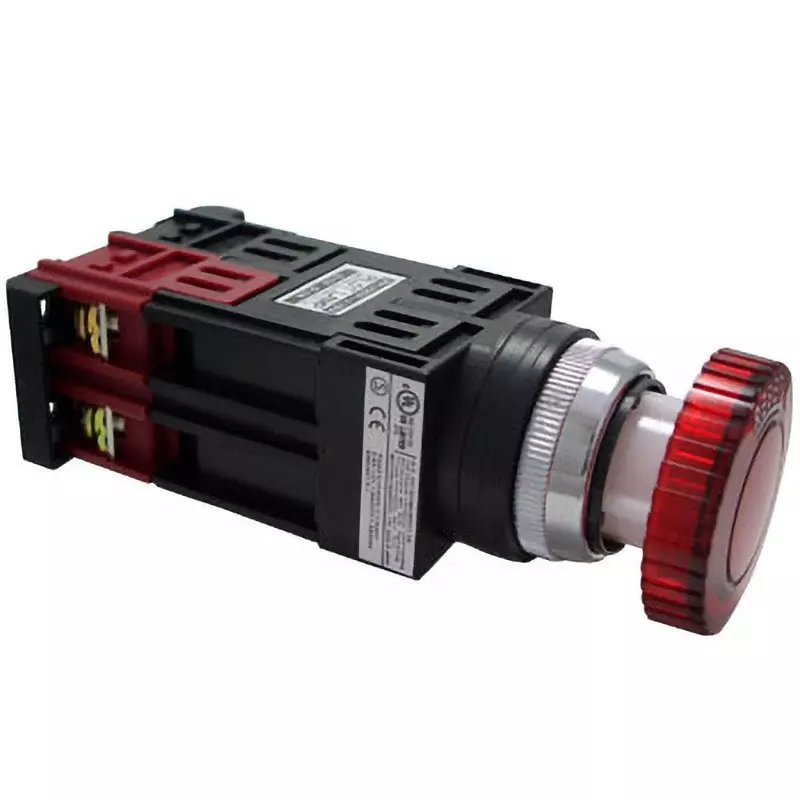

| Model No | A25FTM10011RLE |
| Type of Product | Illuminated Switch |
| Shape | Push lock mushroom (metal ring) |
| Protection Class | IP65 oil-proof type |
Model No |
A25FTM10011RLE |
Type of Product |
Illuminated Switch |
Shape |
Push lock mushroom (metal ring) |
Protection Class |
IP65 oil-proof type |
Type |
With transformer |
Voltage |
100/110 V |
Monotaro ID |
37845324 |
Terminal Shape |
Screw terminal |
Button Shape |
Round |
Contact Configuration |
1a1b |
Operation Type |
Push lock / turn reset |
Mounting Hole Diameter (Φmm) |
25.5(+0.5 to 0) |
Relative Humidity |
45 to 85% |
Rated Insulation Voltage (V) |
AC/DC600 |
Light Source |
LED sphere (High Bright Economy) |
Country of Origin |
Japan |
Rated Operating Current (A) |
Contact part (110V): AC-15 class (inductive load) / 6, DC-13 class (inductive load) /0.7, DC-12 class (resistive load) / 2 |
Temperature Rise |
40K or less |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Maruyasu Electric Co., Ltd. |
Operation Ambient Temperature (°C) |
-20 to 55 |
Insulation Resistance (MOhm) |
100 or more (500 V) |
Contact Resistance (ohm) |
30 mΩ or less |
Cold Resistance |
-40 to 70℃ |
Heat Resistant Temperature (℃) |
-40 to 70 |
Rated Secondary Voltage (V) |
(Illumination section) 5.5 |
