| Model No | SLE210K-6 |
| Type of Product | Rocker Switch |
| Service Life | (Electrical) Inrush current/AC125V 100A, Breaking current/10A: 5000 times (Electrical) Inrush current/AC125V 60A, Breaking current/10A: 10000 times (Electrical) Inrush current/AC250V 100A, Breaking current/10A: 5000 times (electrical) inrush current/AC250V 60A, breaking current/10A: 10000 times (electrical) resistance load: 10000 times |
| Standard | cULus, SEMKO standard certified product |
Model No |
SLE210K-6 |
Type of Product |
Rocker Switch |
Service Life |
(Electrical) Inrush current/AC125V 100A, Breaking current/10A: 5000 times (Electrical) Inrush current/AC125V 60A, Breaking current/10A: 10000 times (Electrical) Inrush current/AC250V 100A, Breaking current/10A: 5000 times (electrical) inrush current/AC250V 60A, breaking current/10A: 10000 times (electrical) resistance load: 10000 times |
Standard |
cULus, SEMKO standard certified product |
Series |
SLE210K |
Rated Current (A) |
10 |
Operating Temperature Range |
-25 to 85 |
Switch Type |

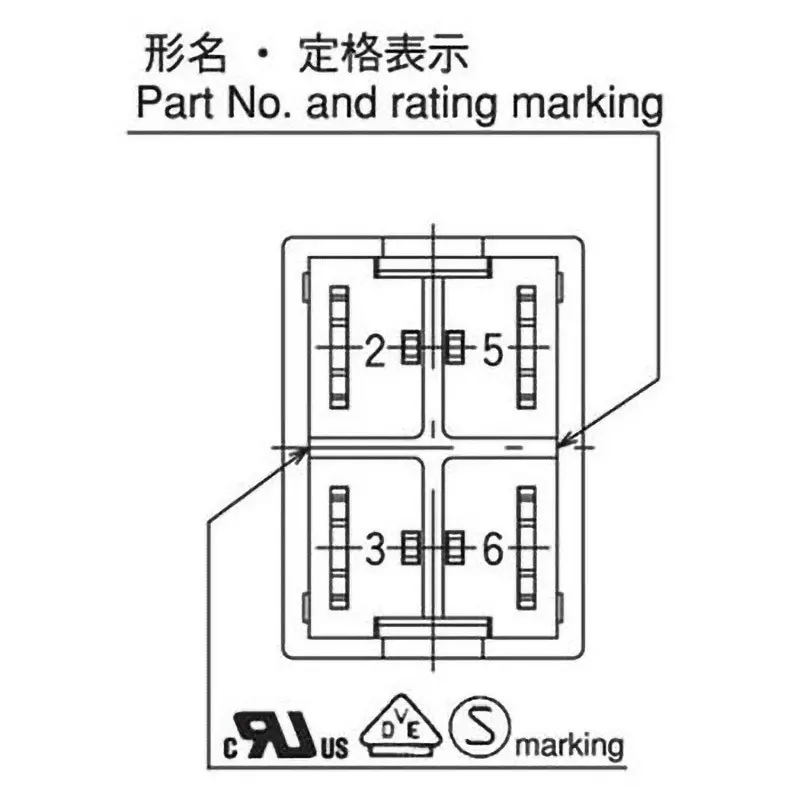

ON-OFF connection terminals: (2-3, 5-6) - |
Withstand Voltage |
(Initial) 1500 V AC for 1 minute |
Monotaro ID |
37722946 |
Terminal Shape |
Solder terminal |
Country of Origin |
Japan |
No. of Pole |
2-pole |
Rated Voltage (V) |
AC 125/250 |
Import Country |
Direct Import from Japan |
Type of Sign |
Snap-in Panel |
Storage Temperature Range |
-40 to 85 |
Pack of |
10 Pcs |
Name of Manufacturer/Packer/Importer |
Nidec Components (formerly Nidec Copal Electronics/Fujisoku) |
Insulation Resistance (MOhm) |
(Minimum) 100 (DC 500 V) |
Contact Resistance (ohm) |
(Initial) 20 or less (DC2-4 V 1A) |
Specifications |
Sealing: Dustproof |
Display |
None |
Current Capacity |
10 |
Letter Color |
White |
Rated Resistance Load Current (A) |
(Power factor 1) AC125/250V: 10 |
Frame Color |
BlACk |
