Nidek Rocker Switch AC 125/250 V Rated Voltage, SLE210K2-6 (Pack of 10)

Name: Nidek Rocker Switch AC 125/250 V Rated Voltage, SLE210K2-6 (Pack of 10)
Brand: Nidek
SKU: IND.PUS.844303171
Price: 5191 INR
Availability: InStock

Visit the Nidek Store

EMI starts at ₹461/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Model No	SLE210K2-6
Type of Product	Rocker Switch
Service Life	(Electrical) Inrush current/AC125V 100A, Breaking current/10A: 5000 times (Electrical) Inrush current/AC125V 60A, Breaking current/10A: 10000 times (Electrical) Inrush current/AC250V 100A, Breaking current/10A: 5000 times (electrical) inrush current/AC250V 60A, breaking current/10A: 10000 times (electrical) resistance load: 10000 times
Standard	UL, SEMKO

More Nidek Push Button Switches products More Push Button Switches products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Model No	SLE210K2-6
Type of Product	Rocker Switch
Service Life	(Electrical) Inrush current/AC125V 100A, Breaking current/10A: 5000 times (Electrical) Inrush current/AC125V 60A, Breaking current/10A: 10000 times (Electrical) Inrush current/AC250V 100A, Breaking current/10A: 5000 times (electrical) inrush current/AC250V 60A, breaking current/10A: 10000 times (electrical) resistance load: 10000 times
Standard	UL, SEMKO
Series	SLE210K
Rated Current (A)	10
Operating Temperature Range	-25 to 85

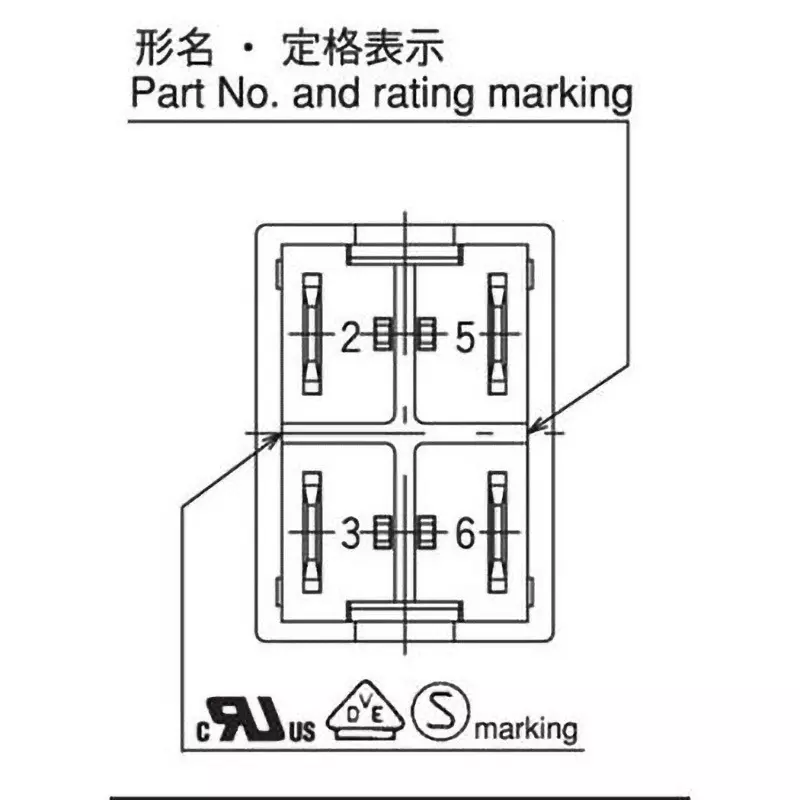

Switch Type	ON-OFF connection terminals: (2-3, 5-6) -
Withstand Voltage	(Initial) 1500 V AC for 1 minute
Monotaro ID	37722964

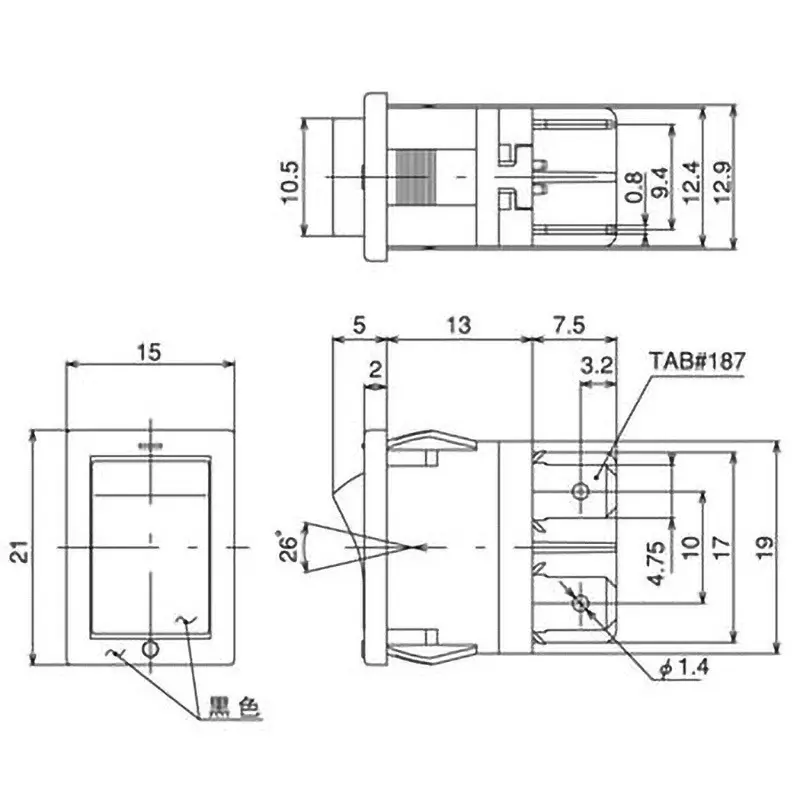

Terminal Shape	Tab TAB#187(t=0.8)
Country of Origin	Japan
No. of Pole	2-pole
Rated Voltage (V)	AC 125/250
Import Country	Direct Import from Japan
Storage Temperature Range	-40 to 85
Pack of	10 Pcs
Name of Manufacturer/Packer/Importer	Nidec Components (formerly Nidec Copal Electronics/Fujisoku)
Insulation Resistance (MOhm)	(Minimum) 100 (DC 500 V)
Contact Resistance (ohm)	(Initial) 20 or less (DC2-4 V 1A)
Display	\| ○
Current Capacity	10
Letter Color	White
Rated Inductive Load Current (A)	Inrush (power factor 0.6): (AC125/250V) 100/60, Interruption (power factor 0.9): (AC125/250V) 10/10
Breaking Current (A)	10
Rated Resistance Load Current (A)	(Power factor 1) AC125/250V: 10
Frame Color	BlACk
