Ships within 19 days
View
View
View
View

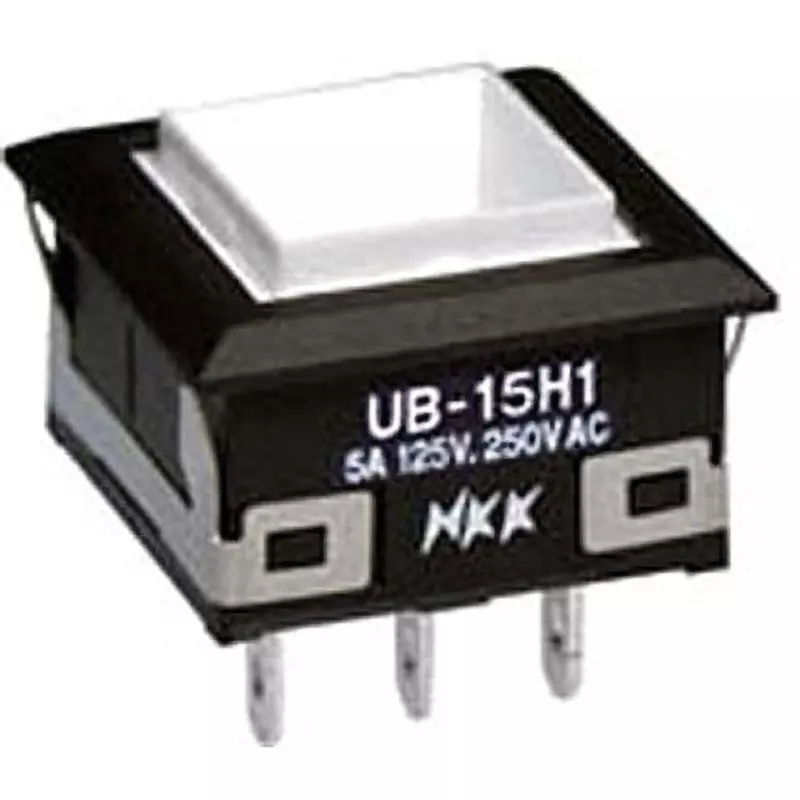

| Model No | UB-15H1KKS1R |
| Type of Product | Illuminated Pushbutton Switch |
| Contact Material | Silver |
| Circuits | Single Pole Double Throw |
Model No |
UB-15H1KKS1R |
Type of Product |
Illuminated Pushbutton Switch |
Contact Material |
Silver |
Circuits |
Single Pole Double Throw |
Type |
Illuminated |
Operating Temperature Range |
-25 to 50℃ |
Withstand Voltage |
AC 1000 (between terminal and terminal), AC 1500 (between terminal and ground) |
Monotaro ID |
75800051 |
Terminal Shape |
Solder terminal |
Button Shape |
Square |
Operation Type |
Momentary |
Mechanical Durability |
1000000 times or more |
Country of Origin |
Japan |
Operating Force (N) |
1.9±0.95 |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Flange |
Yes, no barrier |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
LED |
Super bright LED (brightness level 1) |
Insulation Resistance (MOhm) |
200 or more (DC 500 V) |
Contact Resistance (ohm) |
50 or less (2-4 V DC at 100mA) |
Current Capacity |
5 Amp 125 V AC: 5 Amp 250 V AC: 5 Amp 30 V DC |
Body Color |
Black |
Functional Operation |
ON-＜ON＞ |
Electrical Durability for Opening and Closing |
10,000 times or more |
Heat Resistance |
1.9±0.95 |
