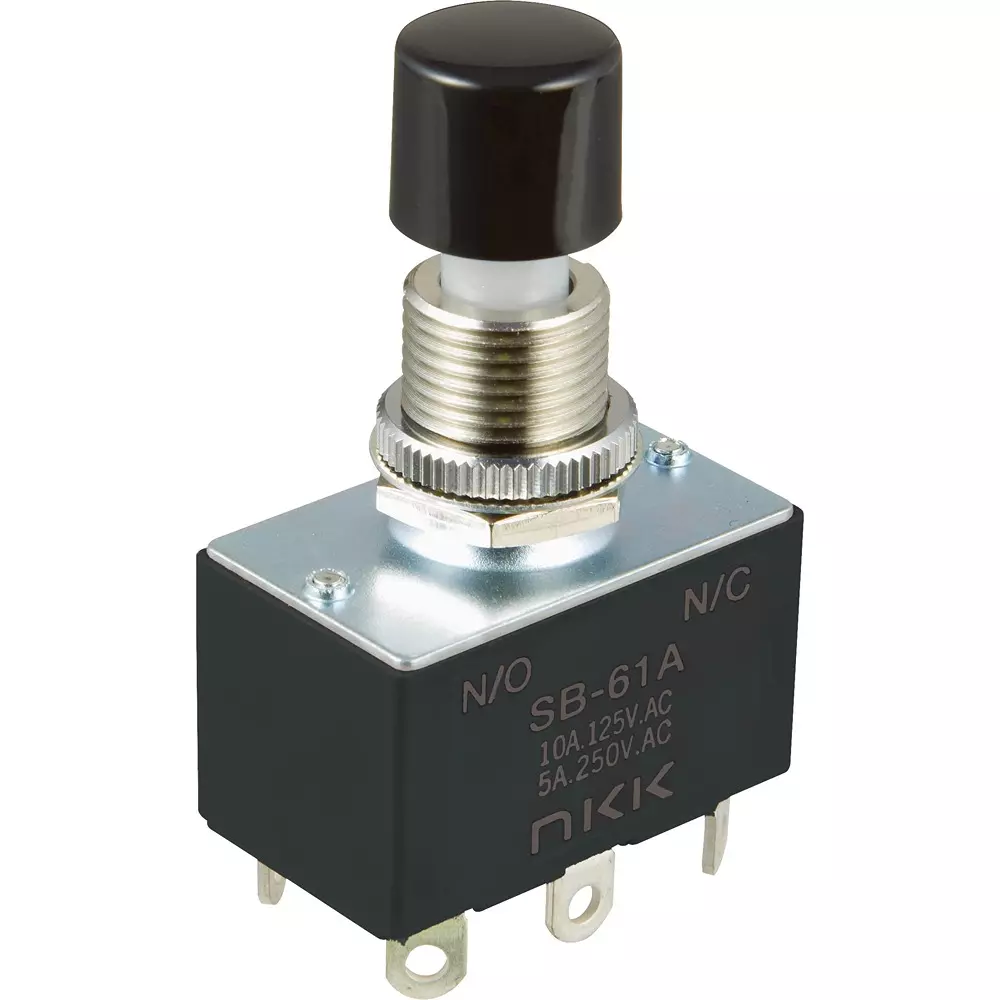

| Model No | SB-61A |
| Type of Product | Small Pushbutton Switch |
| Standard | UL, C-UL |
| Circuits | 2-pole double throw |
Model No |
SB-61A |
Type of Product |
Small Pushbutton Switch |
Standard |
UL, C-UL |
Circuits |
2-pole double throw |
Type |
Non-illuminated type |
Withstand Voltage |
AC 2000 |
Monotaro ID |
8600566 |
Terminal Shape |
Solder |
Button Shape |
Round |
Button Color |
Black |
Operation Type |
Momentary |
Mechanical Durability |
30000 times or more |
Country of Origin |
Japan |
No. of Pole |
2 |
Included Components |
Round nut (AT-504), internal tooth washer (AT-508), hexagon nut (AT-527) |
Import Country |
Direct Import from Japan |
Contact Specifications |
Special Silver Alloy |
Trusco Part No. |
413-2882 |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Contact Resistance (ohm) |
10 or less (DC2 to 4V at 100 mA) |
Functional Operation |
ON-<ON> |
Electrical Durability for Opening and Closing |
10,000 times or more |
Heat Resistance |
When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
Optional Accessories |
Φ13.2 Round Button (At-414), Φ19 Round Button (At-412), Mounting Ring (At-506) |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
