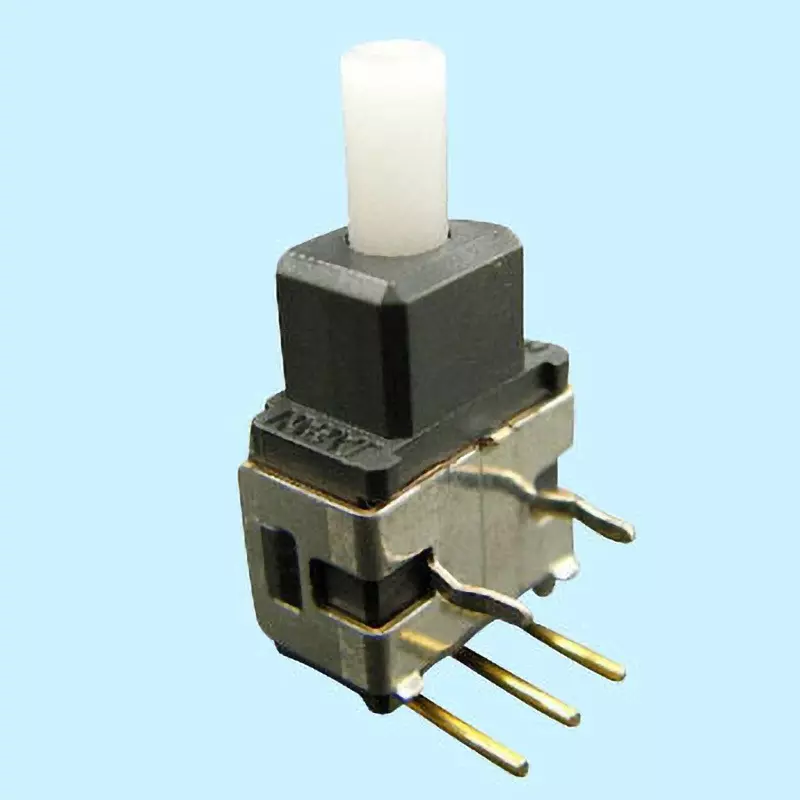

| Model No | AB-15AH |
| Type of Product | Pushbutton Switch |
| Circuits | Single Pole Double Throw |
| Type | Washable, non-illuminated type |
Model No |
AB-15AH |
Type of Product |
Pushbutton Switch |
Circuits |
Single Pole Double Throw |
Type |
Washable, non-illuminated type |
Operating Temperature Range |
-30 to 85℃ |
Withstand Voltage |
AC 500 V 1 minute or more |
Monotaro ID |
8600304 |

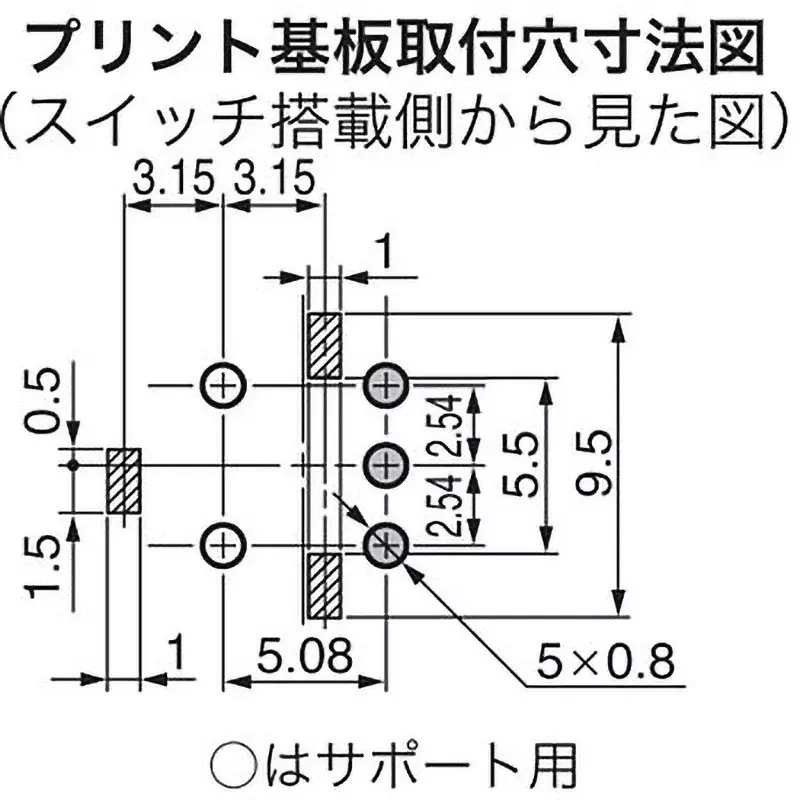

Terminal Shape |
PC-H |
Button Shape |
Circle (sold separately) |
Button Color |
Black, red, white (sold separately) |
Operation Type |
Momentary |
Withstand voltage (V / min) |
AC 500 or higher |
Mechanical Durability |
50000 Times Or More |
Country of Origin |
Japan |
No. of Pole |
1 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Insulation Resistance (MOhm) |
500 or more (DC 500 V) |
Contact Resistance (ohm) |
50 or less (at 20 mV 10 mA) |
Current Capacity |
(AC/DC common), 0.4 VA MAX, 28V MAX (Applicable voltage range: 20 mV to 28V, applicable current range: 0.1 mA to 0.1A), Maximum 28V 0.1A / Durability is 10,000 times, minimum 20mV 0.1μA switching is possible. (For currents less than 0.1mA, the standard value for contact resistance does not apply.) |
Functional Operation |
ON-<ON> |
Electrical Durability for Opening and Closing |
50000 Times Or More |
Heat Resistance |
When using a soldering iron: Tip temperature: 350°C or less, Soldering time: 3 seconds or less, Number of times: 1. When using a soldering bath: Preheat temperature (T1): 110°C or less, Preheat time (t1): 40 seconds or less, Peak temperature (T2): 270°C or less, Peak temperature duration (t2 + t3): 6 seconds or less, Specified board thickness: 1.6 mm, Number of times: 2 times (after returning to room temperature) |
Optional Accessories |
Operation button (AT-475, AT-496), mounter (AT-530) |
