| Model No | CW-SA11KKNGS |
| Type of Product | Rocker Switch |
| Standard | UL, C-UL |
| Type | Non-illuminated type |
Model No |
CW-SA11KKNGS |
Type of Product |
Rocker Switch |
Standard |
UL, C-UL |
Type |
Non-illuminated type |
Operating Temperature Range |
-10 to 70℃ |
Withstand Voltage |
AC 1.5 kV (between terminals) 1 minute or more, AC 3.0 kV (between terminal and ground) More than 1 minute |
Monotaro ID |
8600663 |
Terminal Shape |
Solder |

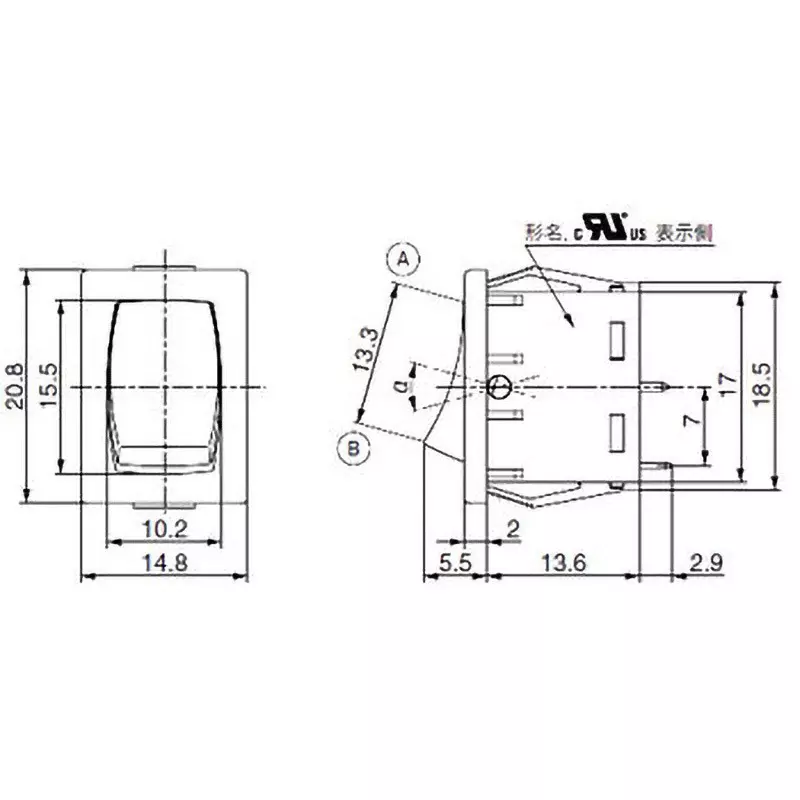

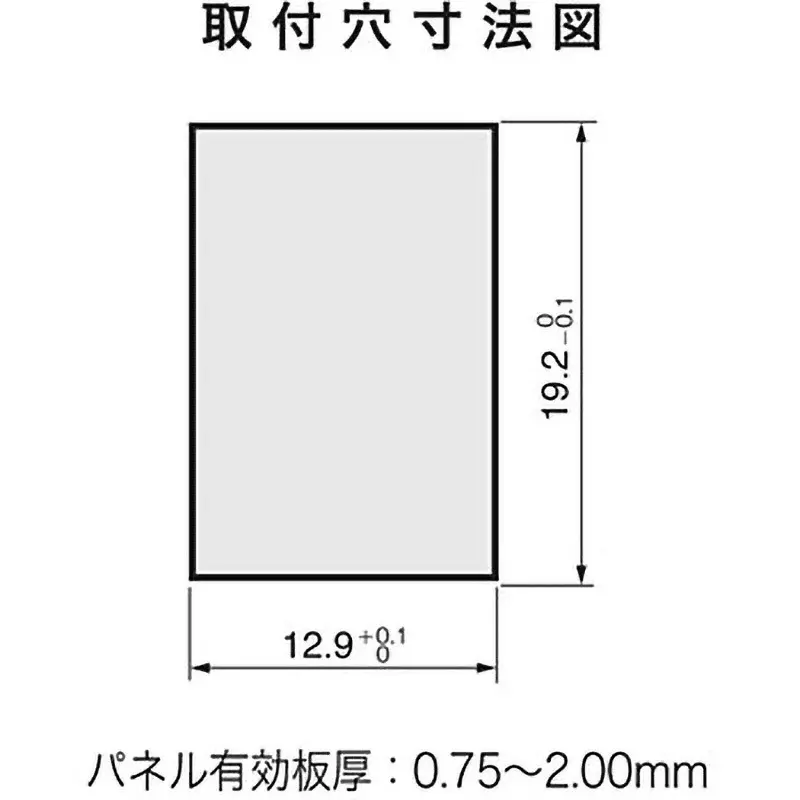

Mounting Dimensions (mm) |
12.9x19.2 |
Mechanical Durability |
30000 times or more |
Country of Origin |
Japan |
No. of Pole |
1 |
Current Capacity (Amps) |
6A 250 V AC (resistive load, inductive load) |
Type of Illumination |
Non-illuminated type |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Insulation Resistance (MOhm) |
500 or more (DC 500 V) |
Contact Resistance (ohm) |
20 or less (at DC 5 V 1 Amp) |
Body Color |
Black |
Inductive Load (A) |
6(AC 250 V) |
Color of Operating Part |
Black |
Functional Operation |
ON-OFF |
Electrical Durability for Opening and Closing |
10,000 times or more (resistance load), 6000 times (inductive load) |
Heat Resistance |
When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
Lever Inclining Angle (°) |
30±4 |
Operational Angle |
30°±4 |
