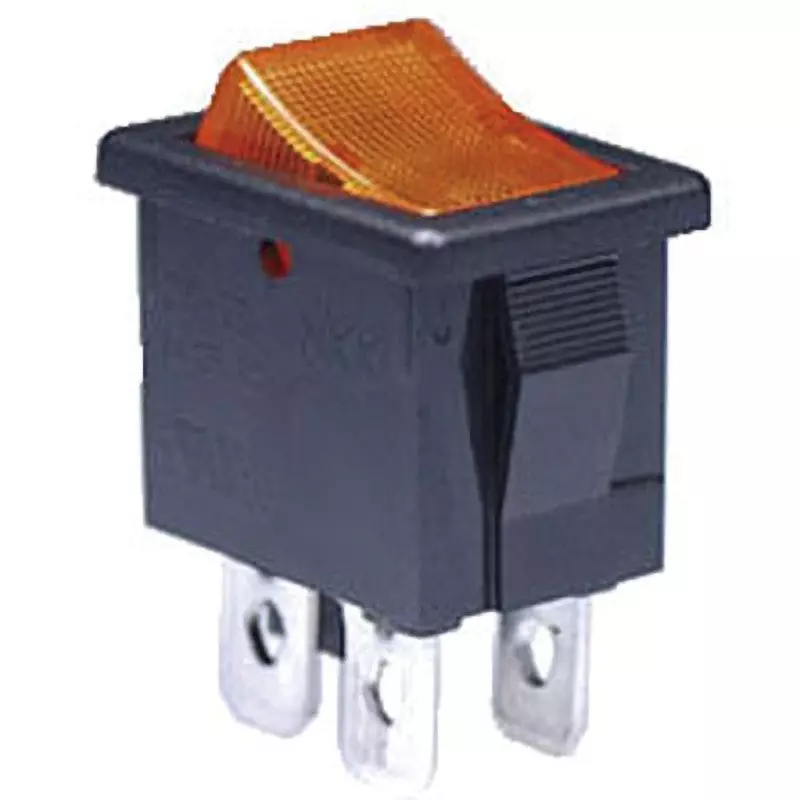

| Model No | CW-SB21NYKZYEF |
| Type of Product | Rocker Switch |
| Standard | RoHS, UL, C-UL |
| Circuits | 2-pole single throw |
Model No |
CW-SB21NYKZYEF |
Type of Product |
Rocker Switch |
Standard |
RoHS, UL, C-UL |
Circuits |
2-pole single throw |
Operating Temperature Range |
-10 to 70℃ |
Withstand Voltage |
AC 1.5 kV (between terminals and terminals) 1 minute or more AC 3.0 kV (between terminals and ground) 1 minute or more |
Monotaro ID |
75802553 |
Terminal Shape |
Tab terminal |
Mechanical Durability |
30,000 times or more |
Country of Origin |
Japan |
No. of Pole |
2 |
Current Capacity (Amps) |
6A 250 V AC (resistive load, inductive load) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Light Colour |
Yellow |
Insulation Resistance (MOhm) |
500 or more (DC 500 V) |
Contact Resistance (ohm) |
20 or less (at DC 5 V 1 Amp) |
Display |
no display |
Current Capacity |
6A 250 V AC (resistive load, inductive load) |
Body Color |
Black |
Color of Operating Part |
Black |
Functional Operation |
ON-OFF |
Electrical Durability for Opening and Closing |
10,000 times or more (resistive load) 6,000 times or more (inductive load) |
Heat Resistance |
When using a soldering iron Temperature 350°C or less Within 3 seconds |
Operational Angle |
30°±4 |
