Ships within 19 days
View
View
View
View

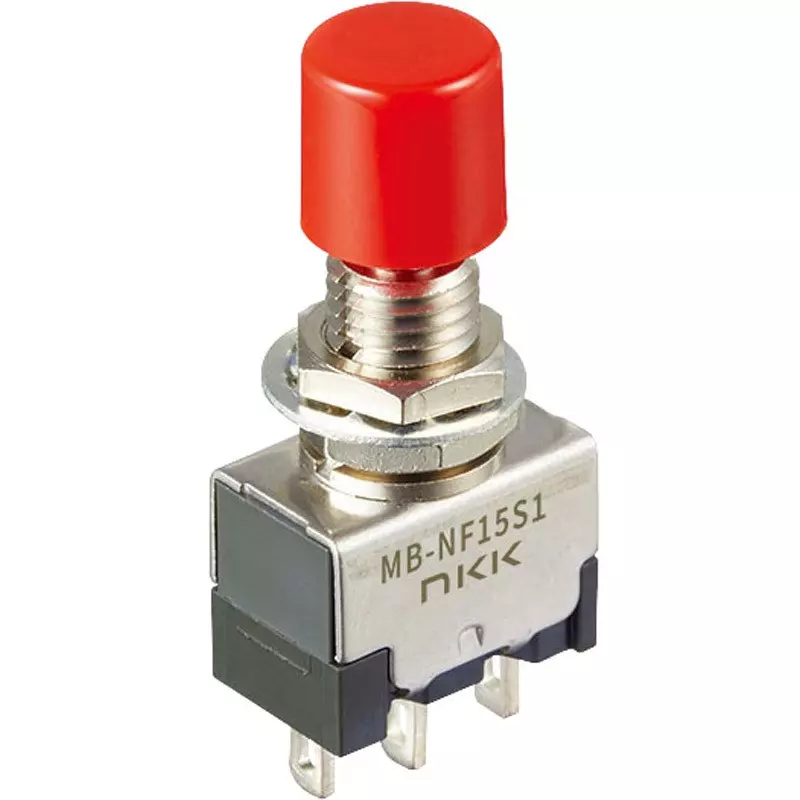

| Model No | MB-NF15S1 |
| Type of Product | Push Button Switch |
| Type | Non-illuminated type |
| Operating Temperature Range | -30 to 85℃ |
Model No |
MB-NF15S1 |
Type of Product |
Push Button Switch |
Type |
Non-illuminated type |
Operating Temperature Range |
-30 to 85℃ |
Monotaro ID |
48444079 |
Mechanism |
Micro switch method |
Terminal Shape |
Solder terminal |
Button Shape |
Round |
Button Color |
Red |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
6.5 |
Country of Origin |
Japan |
Operation Mechanism |
Sold separately: 8 circles/10 circles |
No. of Pole |
Single pole |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Contact Specifications |
Silver |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Specifications |
Solder terminal type (silver Contact): single pole double throw |
Current Capacity |
2A125 V AC |
Functional Operation |
On-(On) |
Dimensions, Vertical x Horizontal x Depth (mm) |
22.8x7.9x13 |
