Ships within 19 days
View
View
View
View

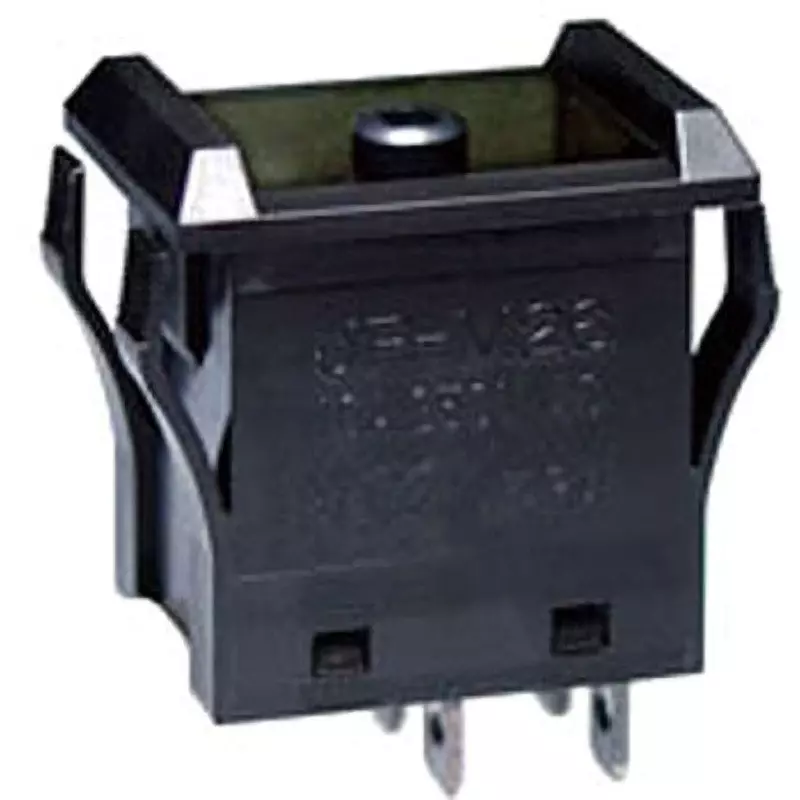

| Model No | JP-M26BAK |
| Type of Product | Pushbutton Switch |
| Circuits | 2-pole single throw |
| Type | Non-illuminated type |
Model No |
JP-M26BAK |
Type of Product |
Pushbutton Switch |
Circuits |
2-pole single throw |
Type |
Non-illuminated type |
Operating Temperature Range |
-10 to 70℃ |
Withstand Voltage |
AC 2000 (between terminal and terminal), AC 4000 (between terminal and ground) |
Monotaro ID |
75797951 |
Housing |
Barrier type |
Terminal Shape |
Solder terminal (can also be used as tab terminal # 187) |
Button Shape |
Square |
Operation Type |
Lock |
Mechanical Durability |
25,000 times or more |
Country of Origin |
Japan |
Operation Mechanism |
Button type |
Rating |
Category / TV-5 compatible |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Insulation Resistance (MOhm) |
1000 or more (DC 500 V) |
Contact Resistance (ohm) |
20 or less (at DC 5 V 1 Amp) |
Current Capacity |
10 Amp 125 V AC: 10 Amp 250 V AC |
Functional Operation |
OFF-ON lock type |
Electrical Durability for Opening and Closing |
25,000 times or more |
Heat Resistance |
When using a soldering iron Temperature 350°C or less Within 3 seconds |
