Ships within 19 days
View
View
View
View

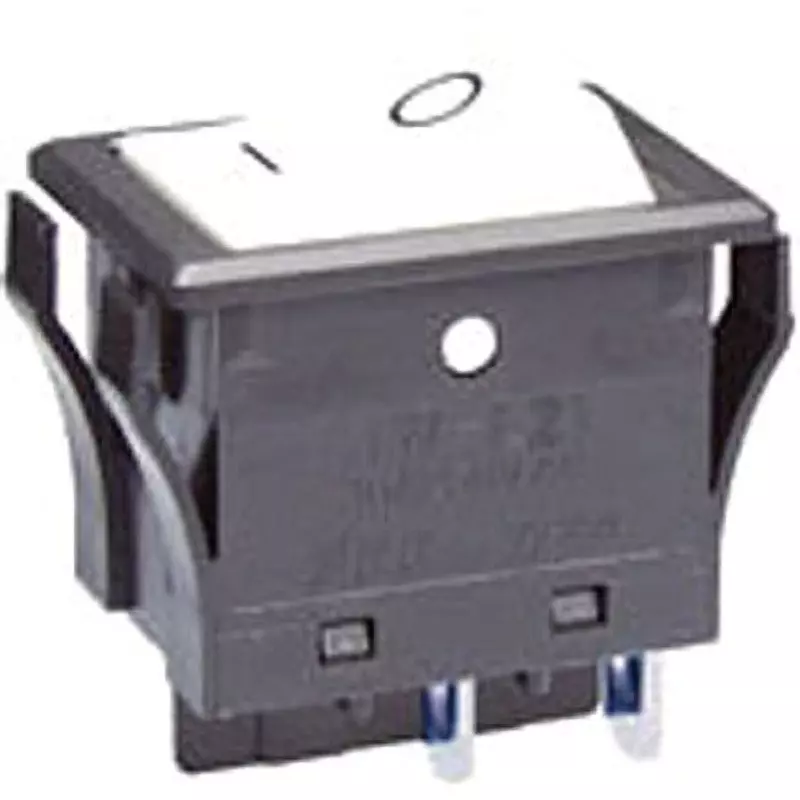

| Model No | JW-L21RAK |
| Color | Black |
| Type of Product | Rocker Switch L Type |
| Suitable For | Barrier (AT-218) |
Model No |
JW-L21RAK |
Color |
Black |
Type of Product |
Rocker Switch L Type |
Suitable For |
Barrier (AT-218) |
Shape |
Terminal / Solder terminal (can also be used as tab terminal # 187) |
Standard |
UL, C-UL, VDE |
Operating Temperature Range |
-25 to 70℃ |
Withstand Voltage |
2.0 kV AC (between terminal and terminal) for 1 minute or longer 4.0 kV AC (between terminal and ground) for 1 minute or longer |
Monotaro ID |
75802605 |
Terminal Shape |
Solder (can also be used as tab #187) |
Mounting Dimensions (mm) |
20.5x29.5 |
Mechanical Durability |
25,000 times or more |
Country of Origin |
Japan |
Operation Mechanism |
Lock lever |
No. of Pole |
2 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Contact Resistance (ohm) |
20 or less (at DC 5 V 1 Amp) |
Body Color |
Black |
Color of Operating Part |
Ivory |
Functional Operation |
ON-OFF |
Electrical Durability for Opening and Closing |
25,000 times or more |
Heat Resistance |
When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
Lever Inclining Angle (°) |
26 |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Operational Angle |
26° |
