| Model No | UB2-15H1KKG4M |

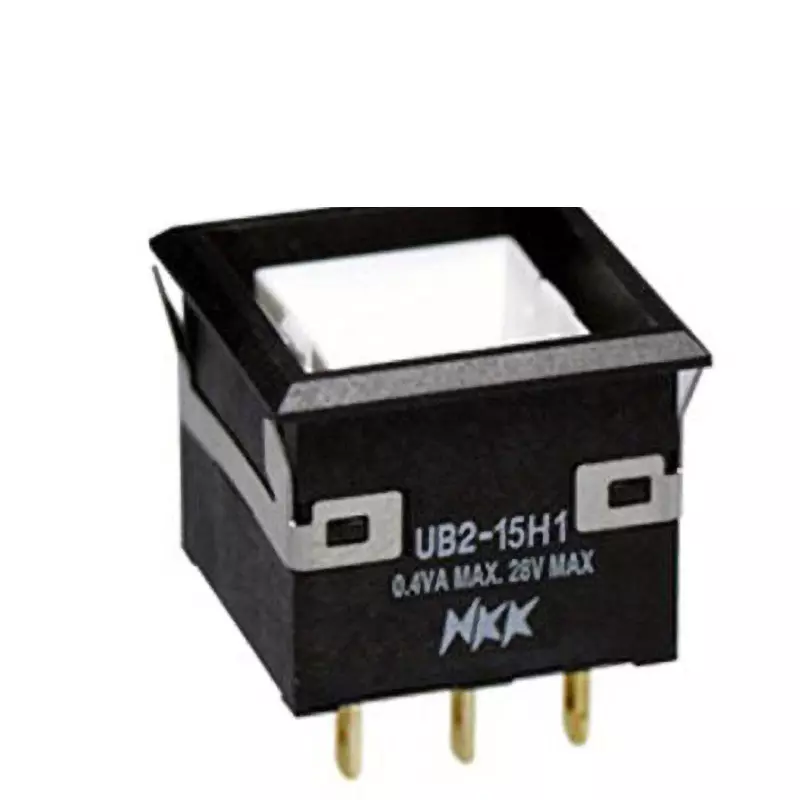

| Type of Product | Ultra-High Brightness Illuminated Push Button |
| Series | UB2 |
| Operating Temperature Range | -25~50℃ |
Model No |
UB2-15H1KKG4M |
Type of Product |
Ultra-High Brightness Illuminated Push Button |
Series |
UB2 |
Operating Temperature Range |
-25~50℃ |
Model Name |
UB2-15H1KKG4M |
Monotaro ID |
68611168 |
Terminal Shape |
Solder Terminal |
Country of Origin |
Japan |
Operation Mechanism |
Sold separately: 15 mm square |
No. of Pole |
Single Pole Double Throw |
RoHS Directive |
Correspondence |
Mounting Hole (mm) |
[Panel] 17.4x17.4 |
Import Country |
Direct Import from Japan |
Contact Specifications |
Gold plate |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Light Colour |
Green |
Current Capacity |
0.4 VA MAX. 28 V MAX. |
Switch Shape |
With flange (snap-in) |
Functional Operation |
ON-(ON) momentary |
Maximum Mounting Panel Thickness (mm) |
3.2 |
Mounting Method |
Snap-in |
Emitting Element |
High brightness LED (ultra-high brightness level 1) |
