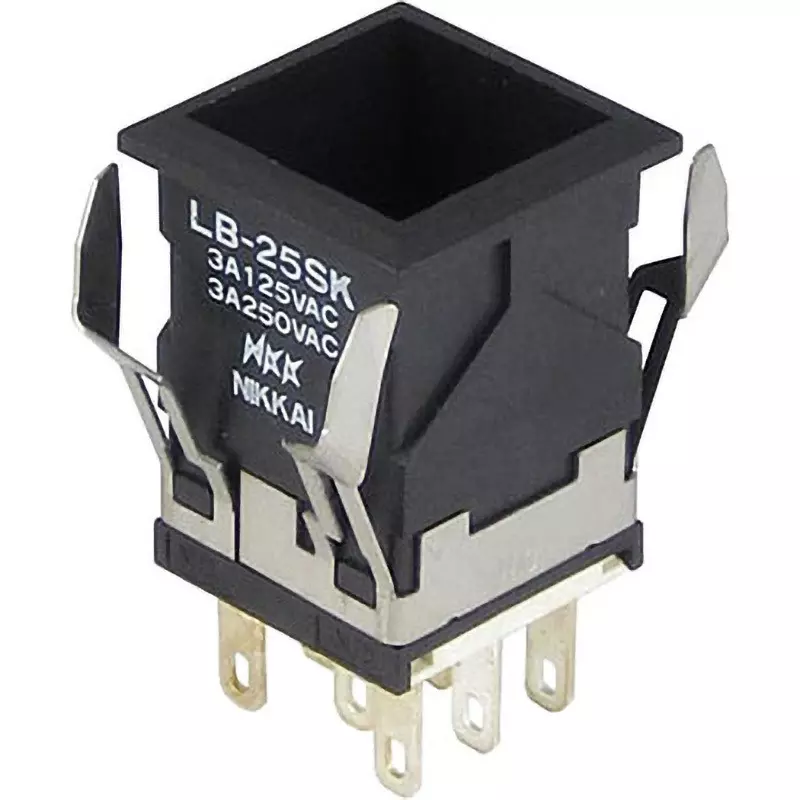

| Model No | LB-25SKS1 |
| Color | Black |
| Type of Product | Illuminated Pushbutton Switch |
| Contact Material | Silver |
Model No |
LB-25SKS1 |
Color |
Black |
Type of Product |
Illuminated Pushbutton Switch |
Contact Material |
Silver |
Standard |
UL, C-UL, e-order |
Circuits |
2-pole double throw |
Type |
Illuminated |
Operating Temperature Range |
-25 to 50℃ |
Withstand Voltage |
AC 1000 (between terminal and terminal), AC 1500 (between terminal and ground) |
Monotaro ID |
75799954 |
Terminal Shape |
Solder (can also be used as tab #110) |
Button Shape |
Square |
Mounting Dimensions (mm) |
16.2 |
Operation Type |
Momentary |
Mechanical Durability |
1000000 times or more |
Country of Origin |
Japan |
Operating Force (N) |
4.41 or less |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Insulation Resistance (MOhm) |
200 or more (DC 500 V) |
Contact Resistance (ohm) |
50 or less (DC2-4V at 100mA) |
Body Color |
Black |
Functional Operation |
ON-<ON> |
Electrical Durability for Opening and Closing |
100000 Times Or More |
Heat Resistance |
When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
Optional Accessories |
Spring-back type safety guard barrier AT-4171, center barrier AT-498, side barrier AT-497, dust cover AT-4001, retaining type guard barrier AT-499, socket AT-712 (for 2 poles) |
