Ships within 25 days
View
View
View
View

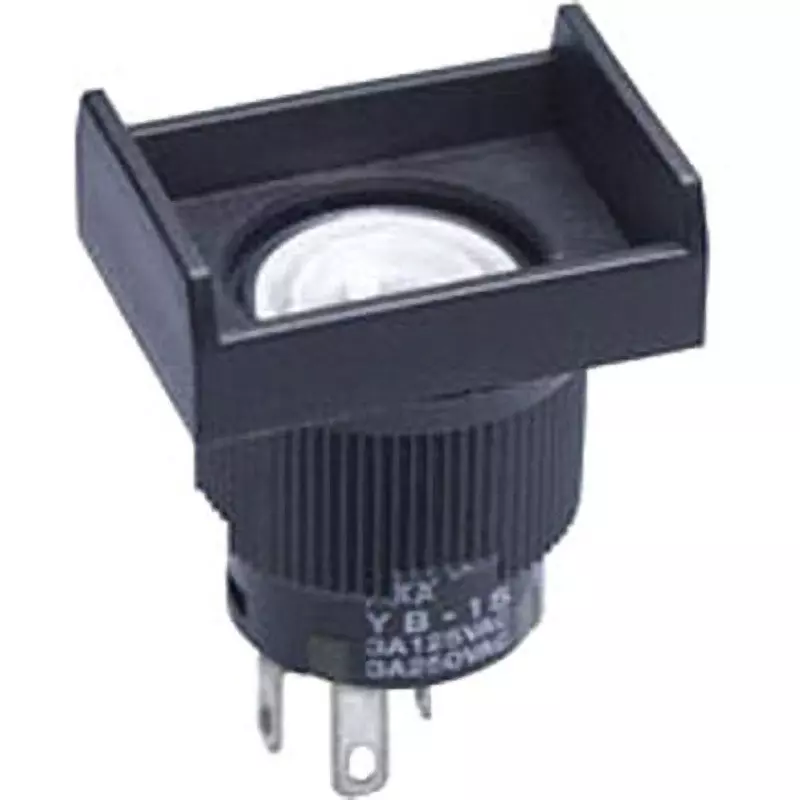

| Model No | YB-15RKS1 |
| Type of Product | Illuminated Pushbutton Switch |
| Contact Material | Silver |
| Circuits | Single Pole Double Throw |
Model No |
YB-15RKS1 |
Type of Product |
Illuminated Pushbutton Switch |
Contact Material |
Silver |
Circuits |
Single Pole Double Throw |
Type |
Illuminated |
Operating Temperature Range |
-25 to 50℃ |
Function |
Non-waterproof type |
Monotaro ID |
75800146 |
Terminal Shape |
Solder terminal (can also be used as tab terminal # 110) |
Button Shape |
Long angle |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
16 |
Mechanical Durability |
1000000 times or more |
Country of Origin |
Japan |
Operating Force (N) |
1.47±0.69 |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Insulation Resistance (MOhm) |
200 or more (DC 500 V) |
Contact Resistance (ohm) |
50 or less (2-4 V DC at 100mA) |
Current Capacity |
3A 125 V AC: 3A 250 V AC: 3A 30 V DC |
Body Color |
Black |
Functional Operation |
ON-＜ON＞ |
Electrical Durability for Opening and Closing |
100000 Times Or More |
Heat Resistance |
When using a soldering iron Temperature 350°C or less Within 3 seconds |
