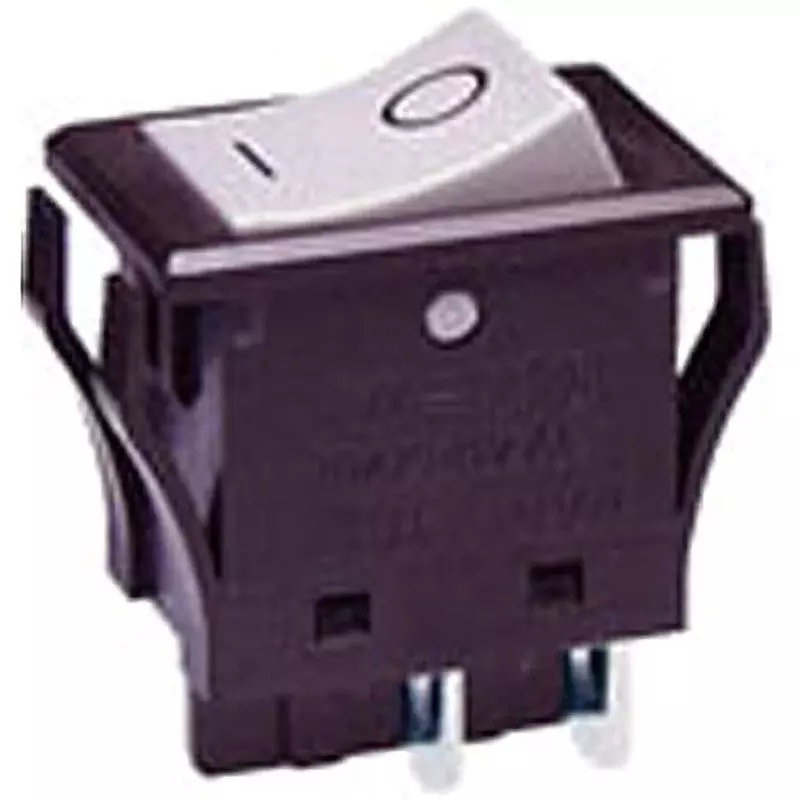

| Model No | JW-M21RGK |
| Color | Black |
| Type of Product | Rocker Switch M Type |
| Shape | Terminal / Solder terminal (can also be used as tab terminal # 110) |
Model No |
JW-M21RGK |
Color |
Black |
Type of Product |
Rocker Switch M Type |
Shape |
Terminal / Solder terminal (can also be used as tab terminal # 110) |
Standard |
UL(TV-5), CSA(TV-5), VDE |
Circuits |
2-pole single throw |
Operating Temperature Range |
-25 to 70℃ |
Withstand Voltage |
2.0 kV AC (between terminal and terminal) for 1 minute 4.0 kV AC (between terminal and ground) for 1 minute |
Monotaro ID |
75802684 |
Terminal Shape |
Solder (can also be used as tab #110) |
Mounting Dimensions (mm) |
15.4x24 |
Mechanical Durability |
25,000 times or more |
Country of Origin |
Japan |
Operation Mechanism |
Lock lever |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NKK Switches Co., Ltd. |
Contact Resistance (ohm) |
10 or less (at DC 5 V 1 Amp) |
Body Color |
Black |
Color of Operating Part |
Gray |
Functional Operation |
ON-OFF |
Electrical Durability for Opening and Closing |
25,000 times or more |
Heat Resistance |
When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
Optional Accessories |
Barrier (AT-217) |
Lever Inclining Angle (°) |
26 |
Insulation Resistance (GΩ) |
1 or more (DC 500 V) |
Operational Angle |
26° |
