- Omron Pushbutton Switch Φ16 mm Non-illuminated for Emergency Stop, A165E-SY-03U
Share
Ships within 18 days
Direct Import From Japan

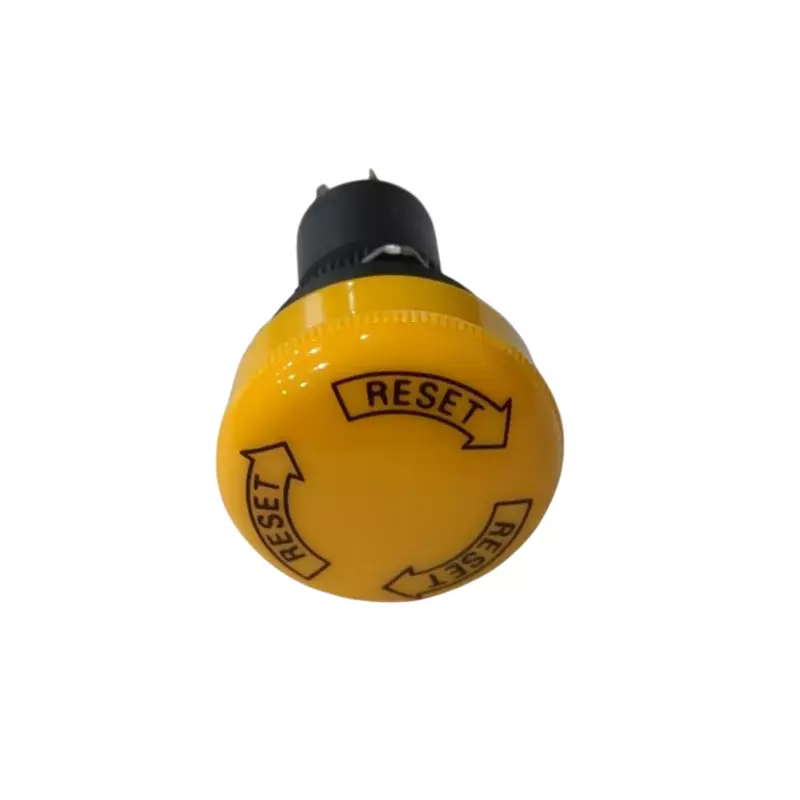

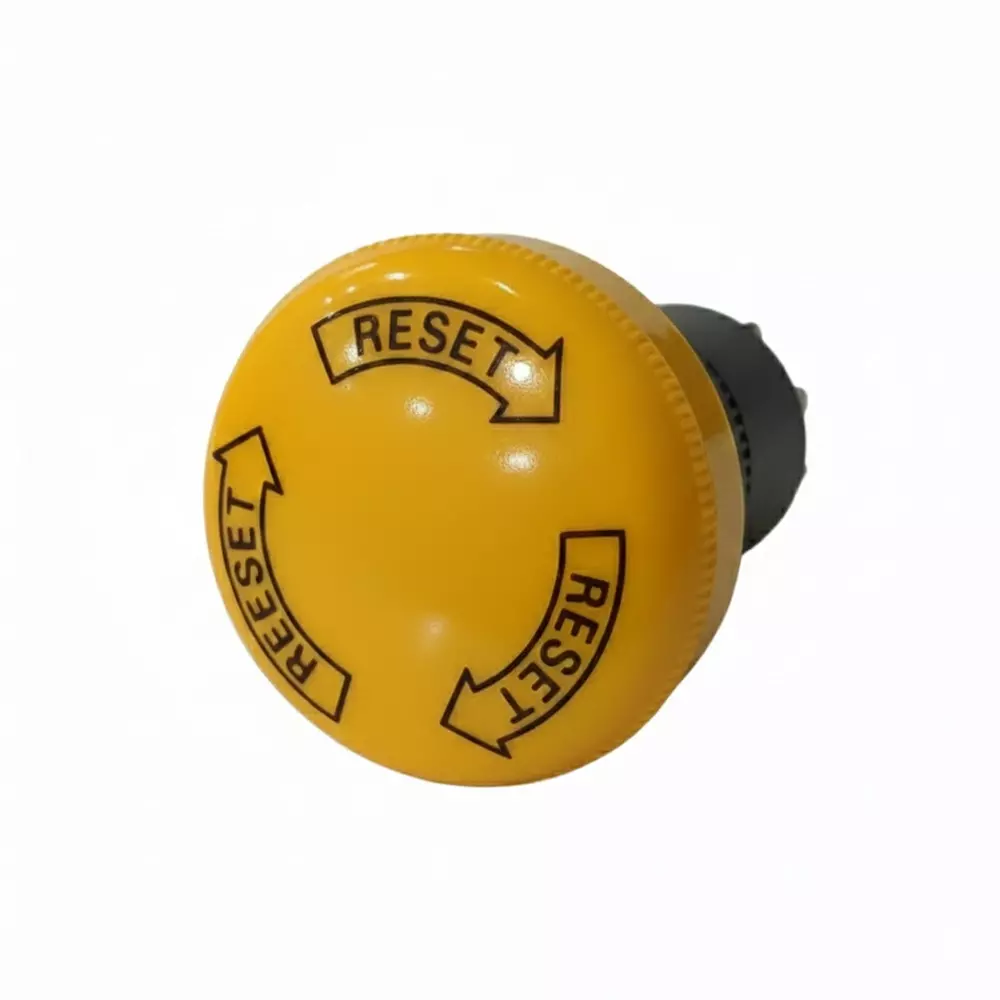

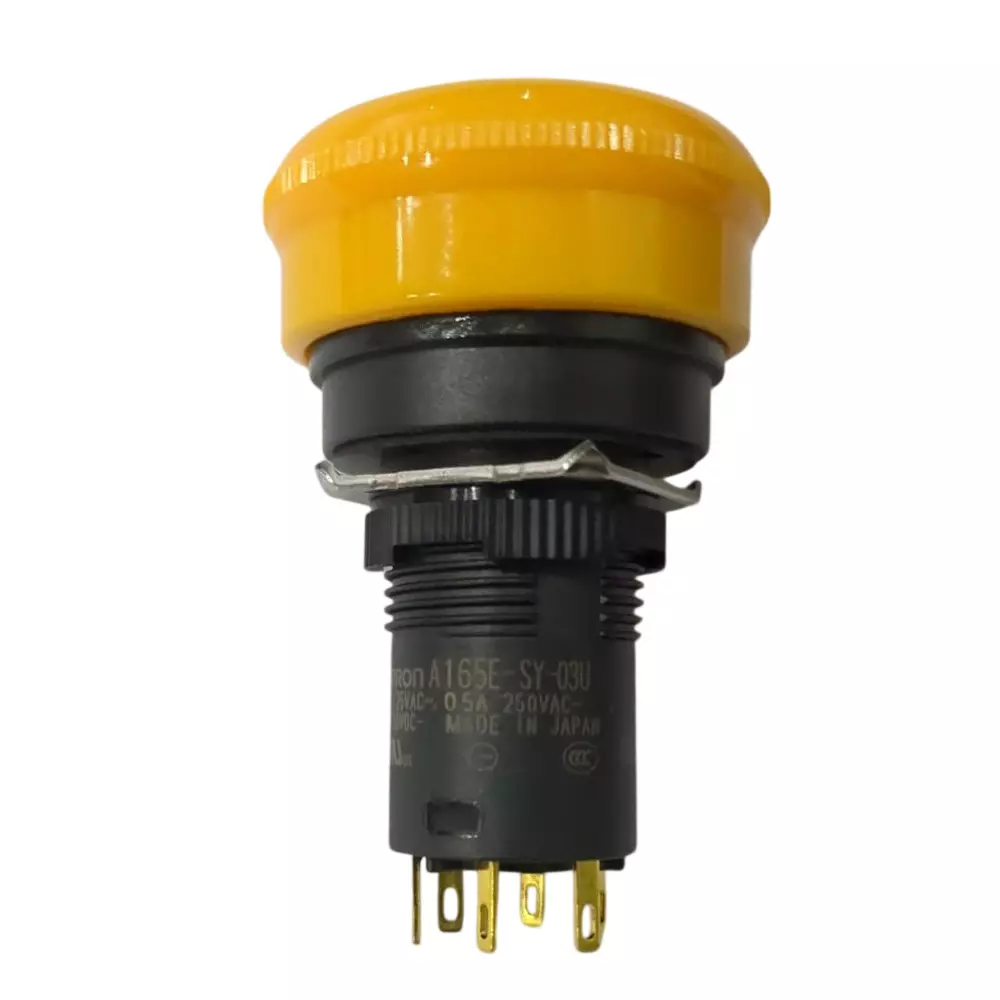

Omron Pushbutton Switch Φ16 mm Non-illuminated for Emergency Stop, A165E-SY-03U
Visit the
Omron
Store
EMI starts at ₹293/month. No Cost EMI available.
Model No
A165E-SY-03U
Available offers
Get up to ₹4,000* on a min. order value of ₹8,499. First-time GST users only. T&C apply.
View
Get up to ₹3,500* on a min. order value of ₹8,499. First-time B2B users only. T&C apply.
View
Get up to ₹1500* on a min. order value of ₹10,999. Applicable on all orders.
View
Save Up to ₹3,000* on Orders Above ₹14,999 | Valid for GST-Registered Users Only.
View
Features
| Model No | A165E-SY-03U |
| Type of Product | Pushbutton Switch |
| Insulation Resistance | 100 mΩ or more (with DC500 V Mega) |
| Protection Class | IP65 Oil Resistant Type (from Front of Panel) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
EXPLORE OTHER VARIANTS
SKU ID:
IND.PUS.422157587
SKU ID:
IND.PUS.828357418
Model No
A165E-SY-02
₹2,713
SKU ID:
IND.PUS.728357392
Model No
A165E-SGR-03U
₹3,303
SKU ID:
IND.PUS.422157572
SKU ID:
IND.PUS.122157594
Model No
A165E-S-02(STOP)
₹2,949
SKU ID:
IND.PUS.422157605
SKU ID:
IND.PUS.728357374
Model No
A165E-S-01-STOP
₹2,477
SKU ID:
IND.PUS.422157568
SKU ID:
IND.PUS.928357407
Model No
A165E-SY-01
₹2,241
SKU ID:
IND.PUS.528645101
Model No
A165E-M-03U
₹3,421
specifications
Model No |
A165E-SY-03U |
Type of Product |
Pushbutton Switch |
Insulation Resistance |
100 mΩ or more (with DC500 V Mega) |
Protection Class |
IP65 Oil Resistant Type (from Front of Panel) |
Shock Resistance |
500 m/s² |
Function |
Non-Illuminated, Push-Lock Turn Reset |
Withstand Voltage |
Between Same Pole Terminals: AC1000 V 50/60 Hz 1 min Between Different Pole Terminals, Between Each Terminal and Ground: AC2000 V 50/60 Hz 1 min Between Lamp Terminals: AC1000 V 50/60 Hz 1 min |
Ambient Humidity to Use |
35~85%RH |
Monotaro ID |
46556955 |
Storage Temperature |
-25° to +65° (with No Icing or Condensation) |
Contact Configuration |
3B |
Operation Ambient Temperature |
-10°C to +55°C (with No Icing or Condensation) |
Mechanical Durability |
100000 Times or more |
Electrical Durability |
100000 Times or more |
Light Source |
Non-illuminated |
Country of Origin |
Japan |
Terminal Type |
Solder Terminal |
Vibration Resistance (Malfunction) |
10 to 55 Hz Double Amplitude 1.5 mm (Malfunction 1 ms or less) |
Shock Resistance (Malfunction) |
300 m/s² (Malfunction within 1 ms) |
Mounting Hole Diameter |
Φ16 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
