Ships within 25 days
Contact Configuration
Terminal Shape
Lamp Voltage (V)
Model No
View
View
View
View

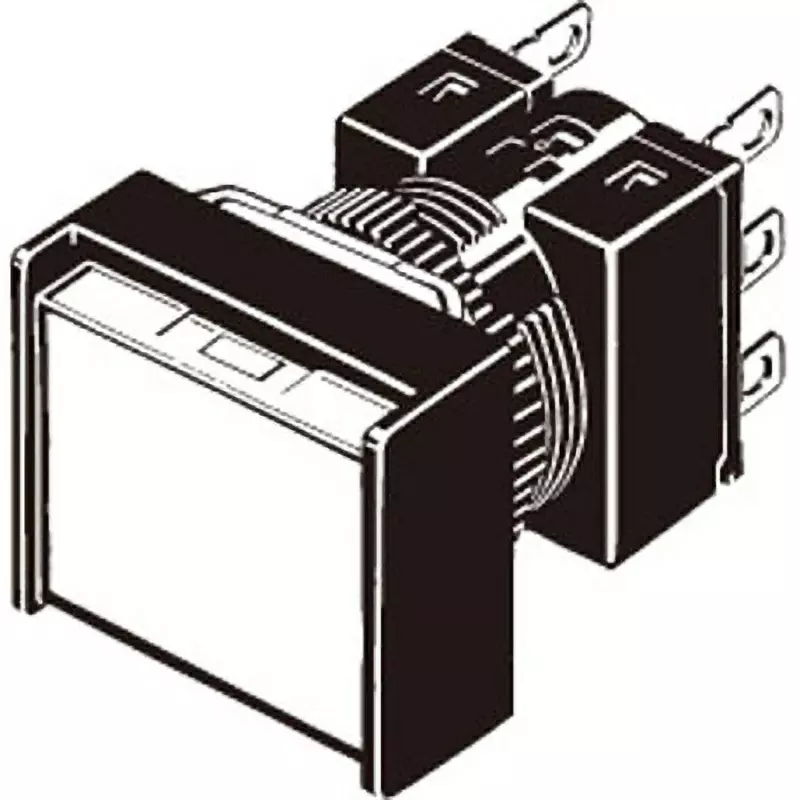

| Model No | A16L-JPYA-24D-2S |
| Type of Product | Pushbutton Switch |
| Insulation Resistance | 100 mΩ or more (with DC500 V Mega) |
| Protection Class | IP40 |
Model No |
A16L-JPYA-24D-2S |
Type of Product |
Pushbutton Switch |
Insulation Resistance |
100 mΩ or more (with DC500 V Mega) |
Protection Class |
IP40 |
Type |
Illumination |
Withstand Voltage |
Between Homopolar Terminals, Between Lamp Terminals: 1000 VAC/min 50/60 Hz | Between Different Polarity Terminals, Between Each Terminal and Ground: 2000 VAC/min 50/60 Hz |
Monotaro ID |
38985213 |
Storage Temperature |
-25 to +65 (with No Icing or Condensation) |
Terminal Shape |
Quick Connector |
Button Shape |
Long Angle (2-Way Guard) |
Contact Configuration |
2C |
Operation Type |
Alternate |
Operation Ambient Temperature |
-10 to +55°C (with No Icing or Condensation) |
Light Source |
LED |
Applicable Voltage (V) |
AC/DC24 V |
Country of Origin |
JAPAN |
Type of Illumination |
LED Illumination |
Import Country |
Direct Import from Japan |
Lamp Voltage (V) |
AC/DC24 V |
Mounting Hole Diameter |
Φ16 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
