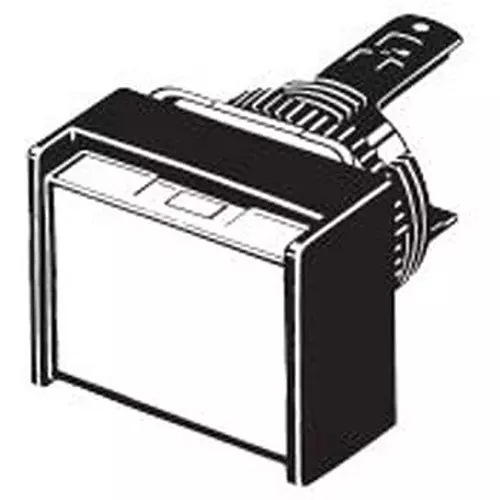

| Type of Product | Pushbutton Switch |
| Protection Class | IP40 |
| Type | Operation unit |
| Shock Resistance | 500m/s² |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Pushbutton Switch |
Protection Class |
IP40 |
Type |
Operation unit |
Shock Resistance |
500m/s² |
Withstand Voltage |
Between homopolar terminals, between lamp terminals: 1000 VAC 50/60 Hz for 1 min / between different polarity terminals, between each terminal and ground: 2000 VAC 50/60 Hz for 1 min |
Ambient Humidity to Use |
35 to 85%RH |
Monotaro ID |
38980575 |
Operation Type |
Momentary |
Country of Origin |
Japan |
Allowable Operation Frequency |
Mechanical: 120 times / min max., Electrical: 20 times / min |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
Shock Resistance (Malfunction) |
Up to 150 m/s² (within malfunction 1ms) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
A16-ABM |
