Ships within 19 days
Model No
View
View
View
View

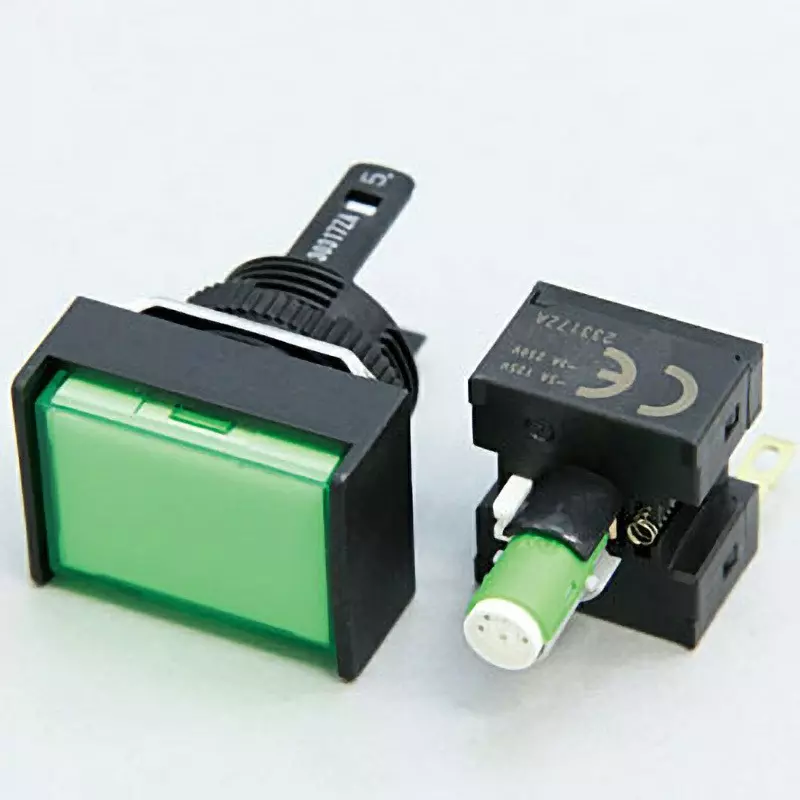

| Model No | A165L-JGM-24D-1 |
| Type of Product | Push Button Switch |
| Protection Class | IP66 oil-resistant |
| Type | Separated Type |
Model No |
A165L-JGM-24D-1 |
Type of Product |
Push Button Switch |
Protection Class |
IP66 oil-resistant |
Type |
Separated Type |
Series |
A16 Series |
Shock Resistance |
500m/s² |
Withstand Voltage |
Between homopolar terminals, between lamp terminals: 1000 VAC 50/60 Hz for 1 min / between different polarity terminals, between each terminal and ground: 2000 VAC 50/60 Hz for 1 min |
Ambient Humidity to Use |
35 to 85%RH |
Monotaro ID |
38974747 |
Storage Temperature |
-25 to 65℃ |
Contact Configuration |
1C |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
Φ16 mm |
Light Source |
LED |
Applicable Voltage (V) |
AC/DC24±5% (LED lamp) |
Country of Origin |
Japan |
Rated Voltage (V) |
AC/DC24 (LED lamp) |
Terminal Type |
Solder terminal |
Type of Illumination |
Illumination |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
A165L-JGM-24D-1 |
Operation Ambient Temperature (°C) |
-10 to 55 (no freezing or condensation) |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Contact Resistance (ohm) |
100 or less (initial value) |
