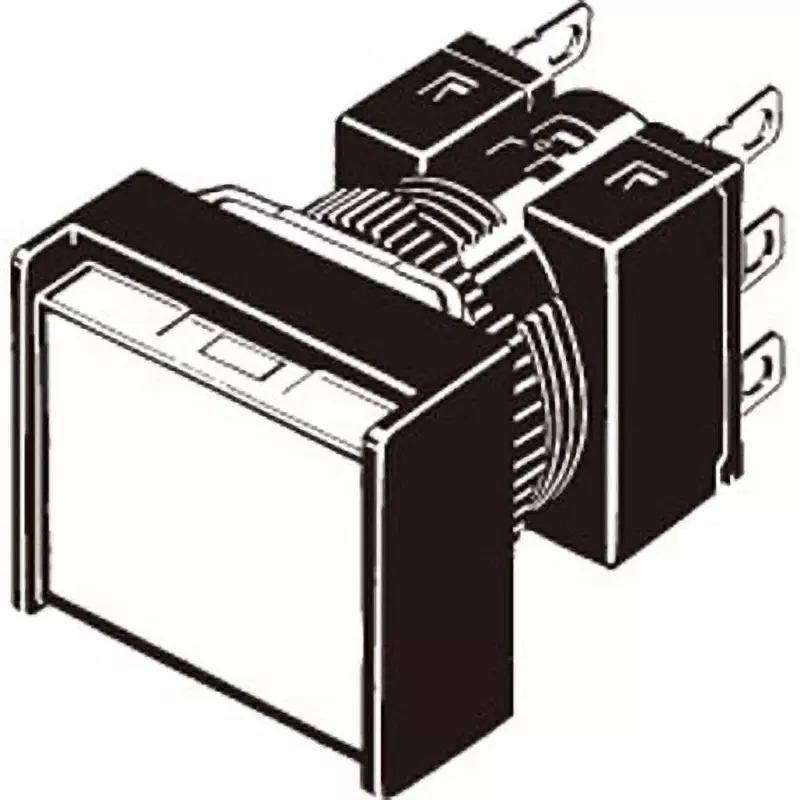

| Model No | A165-JRM-2S |
| Type of Product | Pushbutton Switch |
| Insulation Resistance | 100 mΩ or more (with DC500 V mega) |
| Shape | Rectangular |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
A165-JRM-2S |
Type of Product |
Pushbutton Switch |
Insulation Resistance |
100 mΩ or more (with DC500 V mega) |
Shape |
Rectangular |
Protection Class |
IP65 |
Shock Resistance |
500 m/s² |
Withstand Voltage |
Between Homopolar Terminals, Between Lamp Terminals: 1000 VAC 50/60 Hz for 1 min / Between Different Polarity Terminals, Between Each Terminal And Ground: 2000 VAC 50/60 Hz for 1 min |
Monotaro ID |
38970897 |
Storage Temperature |
-25 to +65°C (With No Icing or Condensation) |
Button Shape |
Long Angle (2-Way Guard) |
Button Color |
Red |
Contact Configuration |
2c |
Operation Type |
Momentary |
Operation Ambient Temperature |
-10 to +55°C (With No Icing or Condensation) |
Country of Origin |
JAPAN |
Terminal Type |
Quick Connector |
Type of Illumination |
Non-Illuminated |
Mounting Hole Diameter |
Φ16 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
