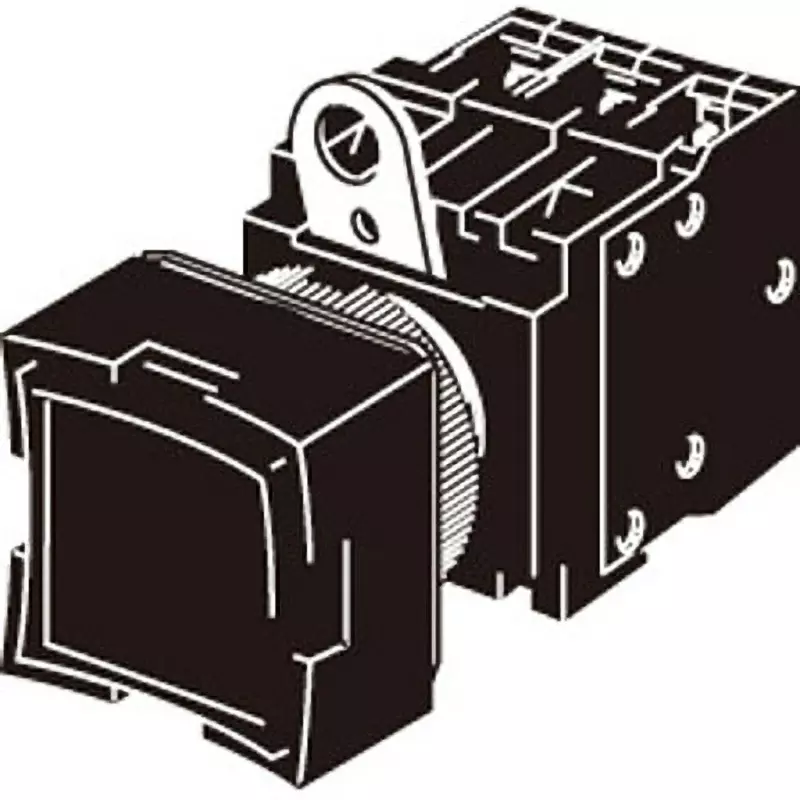

| Model No | A22L-DG-T2-11M |
| Type of Product | Pushbutton Switch |
| Insulation Resistance | 100 mΩ or more (with DC500 V mega) |
| Shape | Square Guard Type |
Model No |
A22L-DG-T2-11M |
Type of Product |
Pushbutton Switch |
Insulation Resistance |
100 mΩ or more (with DC500 V mega) |
Shape |
Square Guard Type |
Protection Class |
IP65 |
Contact Resistance |
100 mΩ or less (initial value) |
Withstand Voltage |
Between Homopolar Terminals, Between Each Terminal and Ground: 2500 VAC 50/60 Hz for 1 min |
Monotaro ID |
38997637 |
Storage Temperature |
-40 to +70°C (With No Icing or Condensation) |
Button Shape |
Corner (Guard Type) |
Contact Configuration |
1a1b |
Operation Type |
Momentary |
Operation Ambient Temperature |
-20 to +55°C (With No Icing or Condensation) |
Light Source |
LED |
Applicable Voltage (V) |
AC200 |
Country of Origin |
JAPAN |
Terminal Type |
Screw Terminal (M3.5) |
Type of Illumination |
Illumination (LED (Built-In Reduced Pressure Illumination Function)) |
Import Country |
Direct Import from Japan |
Mounting Hole Diameter |
Φ22/25 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
