Ships within 19 days
Model No
Button Color
View
View
View
View

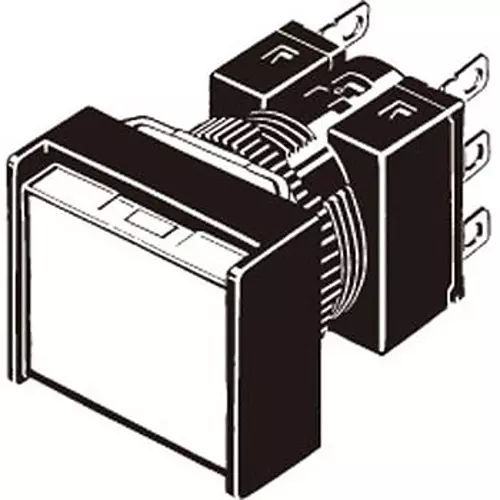

| Model No | A16-JBM-1 |
| Type of Product | Push Button Switch |
| Shape | Rectangular 2-Way Guard |
| Protection Class | IP40 |
Model No |
A16-JBM-1 |
Type of Product |
Push Button Switch |
Shape |
Rectangular 2-Way Guard |
Protection Class |
IP40 |
Type |
Pushbutton switch (separate type) |
Series |
A16 Series |
Shock Resistance |
500m/s² |
Withstand Voltage |
Between homopolar terminals, between lamp terminals: 1000 VAC 50/60 Hz for 1 min / between different polarity terminals, between each terminal and ground: 2000 VAC 50/60 Hz for 1 min |
Ambient Humidity to Use |
35 to 85%RH |
Monotaro ID |
38981223 |
Storage Temperature |
-25 to 65℃ |
Button Color |
Black |
Contact Configuration |
1C Contact |
Operation Type |
Momentary |
Mechanical Durability |
2 million times or more |
Country of Origin |
Japan |
Allowable Operation Frequency |
Mechanical: 120 times / min max., Electrical: 20 times / min |
Terminal Type |
Solder terminal |
Type of Illumination |
Non-Illuminated |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
Shock Resistance (Malfunction) |
Up to 150 m/s² (within malfunction 1ms) |
Mounting Hole Diameter |
Φ16 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
A16-JBM-1 |
Operation Ambient Temperature (°C) |
-10 to 55 (no freezing or condensation) |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Contact Resistance (ohm) |
100 or less (initial value) |
