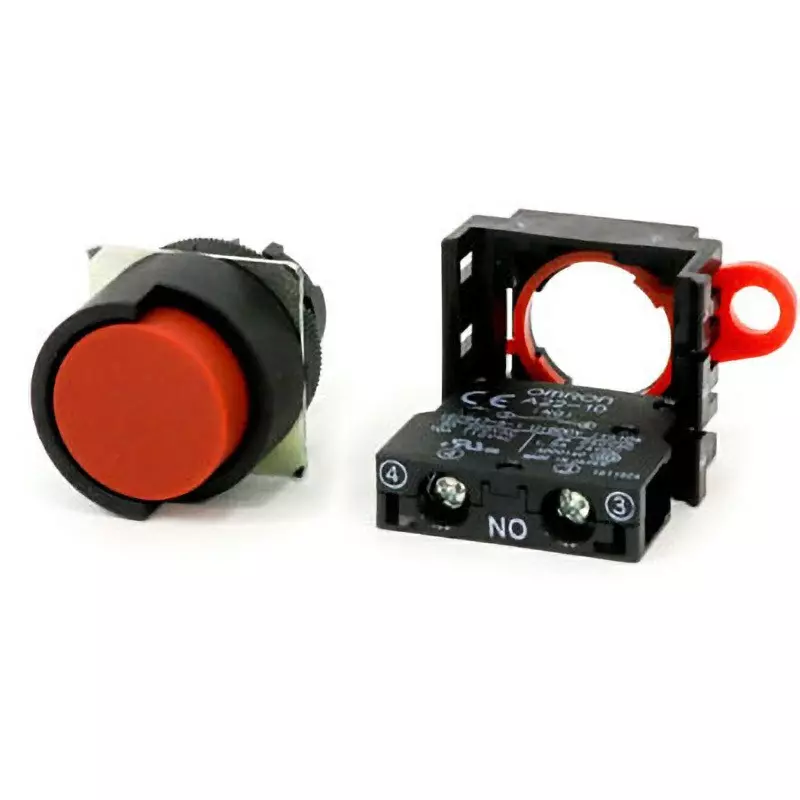

| Type of Product | Pushbutton Switch |
| Protection Class | IP65 |
| Type | Push button switch |
| Shock Resistance | Up to 1000m/s² |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Pushbutton Switch |
Protection Class |
IP65 |
Type |
Push button switch |
Shock Resistance |
Up to 1000m/s² |
Withstand Voltage |
Between homopolar terminals, between each terminal and ground: 2500 VAC 50/60 Hz for 1 min |
Ambient Humidity to Use |
35 to 85%RH |
Monotaro ID |
38994593 |
Storage Temperature |
-40 to +70℃ |
Terminal Shape |
Screw terminal |
Button Shape |
Round (half guard type) |
Button Color |
Red |
Contact Configuration |
1 A Contact |
Operation Type |
Momentary |
Electrical Durability |
500,000 times or more |
Country of Origin |
Japan |
Allowable Operation Frequency |
Mechanical: Up to 60 times / min, Electrical: 30 times / min |
Terminal Type |
Screw terminal (M3.5) |
Type of Illumination |
Non-illuminated |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
Shock Resistance (Malfunction) |
1000 m/s² (malfunction 1ms or less) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
A22-HR-10M |
Operation Ambient Temperature (°C) |
-20 to +70 (with no icing or condensation) |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Contact Resistance (ohm) |
100 or less (initial value) |
