| Model No | BEH2300 |
| Type of Product | High-Pro Pushbutton Switch |
| Type | Exposure type |
| Terminal Screw | M3.5 |
Model No |
BEH2300 |
Type of Product |
High-Pro Pushbutton Switch |
Type |
Exposure type |
Terminal Screw |
M3.5 |
No. of Buttons |
2 |
Part No |
BEH2300 |
Monotaro ID |
9466694 |
Motor Capacity (kW) |
(220 V) 1.5 |
Country of Origin |
Japan |
Case Material |
Plastic |
Letters on Button |
ON (black), OFF (red) |
Rated Operating Current (A) |
30 |
Connectable Wire (mm2) |
(Single Wire) Φ1.6 To Φ2.0 (Stranded Wire) 5.5 |
Standard Color |
(Box) Munsell 6Y8 / 1.5 (Reference Value) |
Rated Capacity (kW) |
(AC 100/110 V)0.75, (AC 200/220 V)1.5 |
No. of Pole |
2P |
Import Country |
Direct Import from Japan |
Rated Operating Voltage (V) |
AC440 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Insulation Resistance (MOhm) |
5 or more |

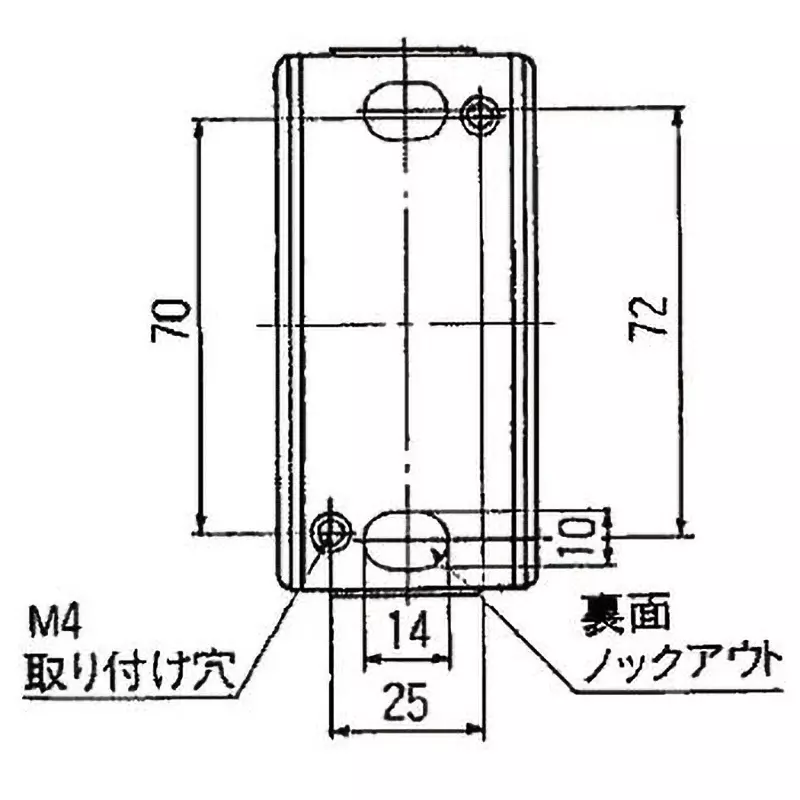

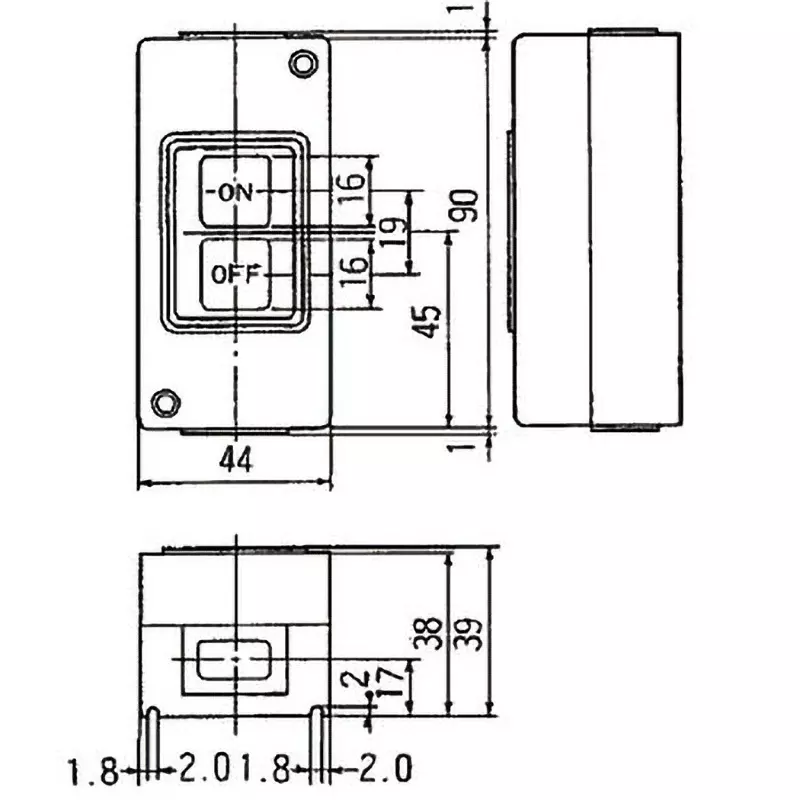

Outer Dimensions (mm) |
H90xW44xD39 |
