| Model No | BEH3150 |
| Type of Product | High-Pro Pushbutton Switch |
| Type | Exposure type |
| Terminal Screw | M3.5 |
Model No |
BEH3150 |
Type of Product |
High-Pro Pushbutton Switch |
Type |
Exposure type |
Terminal Screw |
M3.5 |
No. of Buttons |
2 |
Part No |
BEH3150 |
Monotaro ID |
9466712 |
Motor Capacity (kW) |
(220 V) 2.2 |
Country of Origin |
Japan |
Case Material |
Plastic |
Letters on Button |
ON (black), OFF (red) |
Rated Operating Current (A) |
15 |
Connectable Wire (mm2) |
(Single Wire) Φ1.6 To Φ2.0 (Stranded Wire) 5.5 |
Standard Color |
(Box) Munsell 6Y8 / 1.5 (Reference Value) |
Rated Capacity (kW) |
(AC 200/220 V)2.2, (AC 400/440 V)3.7 |
No. of Pole |
3P |
Import Country |
Direct Import from Japan |
Rated Operating Voltage (V) |
AC440 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Insulation Resistance (MOhm) |
5 or more |

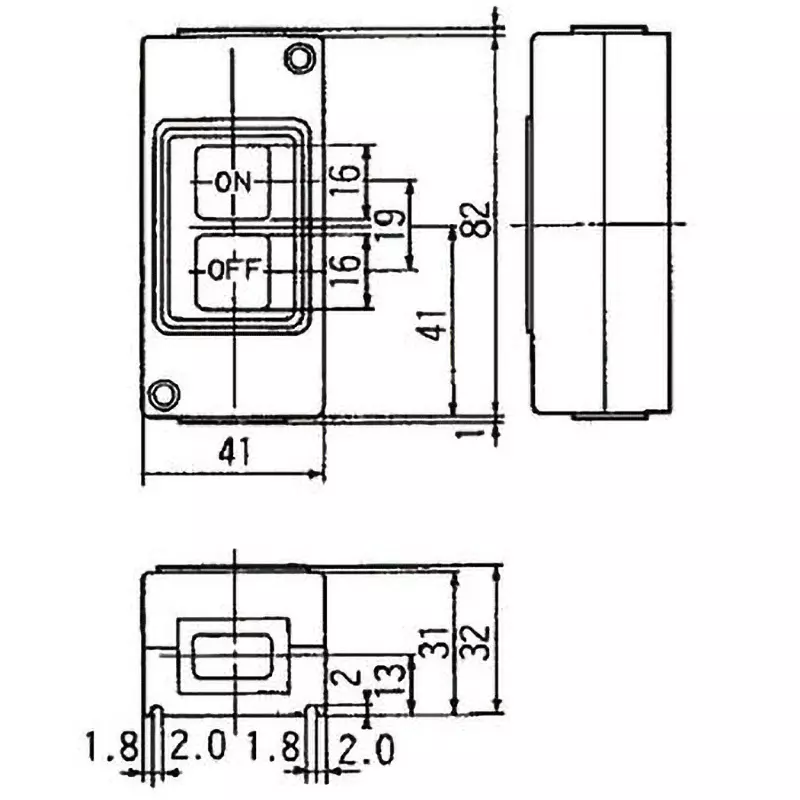

Outer Dimensions (mm) |
H82xW41xD32 |
