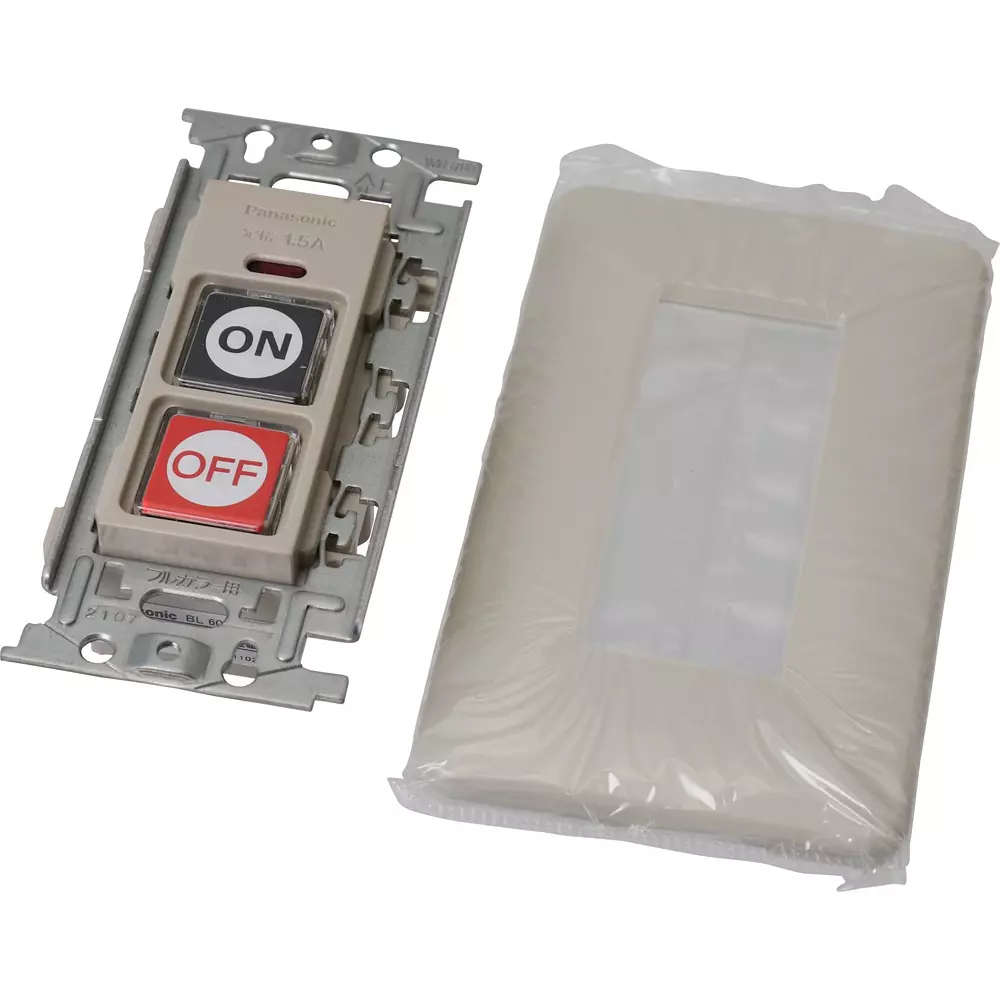

| Model No | BL6002K |
| Type of Product | Pilot Push Button |
| Type | Embedded type |
| Terminal Screw | 2-3.5 (standard compatible, round crimp terminal), 1.2 N m (12.2 kgf cm) (appropriate tightening torque) |
Model No |
BL6002K |
Type of Product |
Pilot Push Button |
Type |
Embedded type |
Terminal Screw |
2-3.5 (standard compatible, round crimp terminal), 1.2 N m (12.2 kgf cm) (appropriate tightening torque) |
No. of Buttons |
2 |
Part No |
BL6002K |
Monotaro ID |
37612741 |
Contact Configuration |
1A (Button Display / On) + 1B (Button Display / Off) |
Country of Origin |
Japan |
Letters on Button |
ON (black), OFF (red) |
Rated Operating Current (A) |
0.015-1.5 |
Connectable Wire (mm2) |
2 (stranded wire), 1.6 mm (single wire) |
Rating |
50 Hz / 60 Hz (frequency), 600V (insulation voltage), 15mA (minimum lamp operating current) |
Opening / Closing Life (times) |
(Electrical) 500,000 Or More / (Mechanical) 5 Million Or More (Opening / Closing Frequency 1200 Times / Hour) |
Tightening Torque (Nm) |
(Standard) 0.8-1.2 |
Conformed Standard |
JIS C4521 |
Included Components |
For 3 full color plates (part number: WN6003W010) |
Import Country |
Direct Import from Japan |
Rated Operating Voltage (V) |
AC24-600 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Screw Dimension |
M3.5 |
Current Capacity |
(Contact) Ac250V Or Less / 1.5, Ac600V Or Less / 1.5 Amp |
