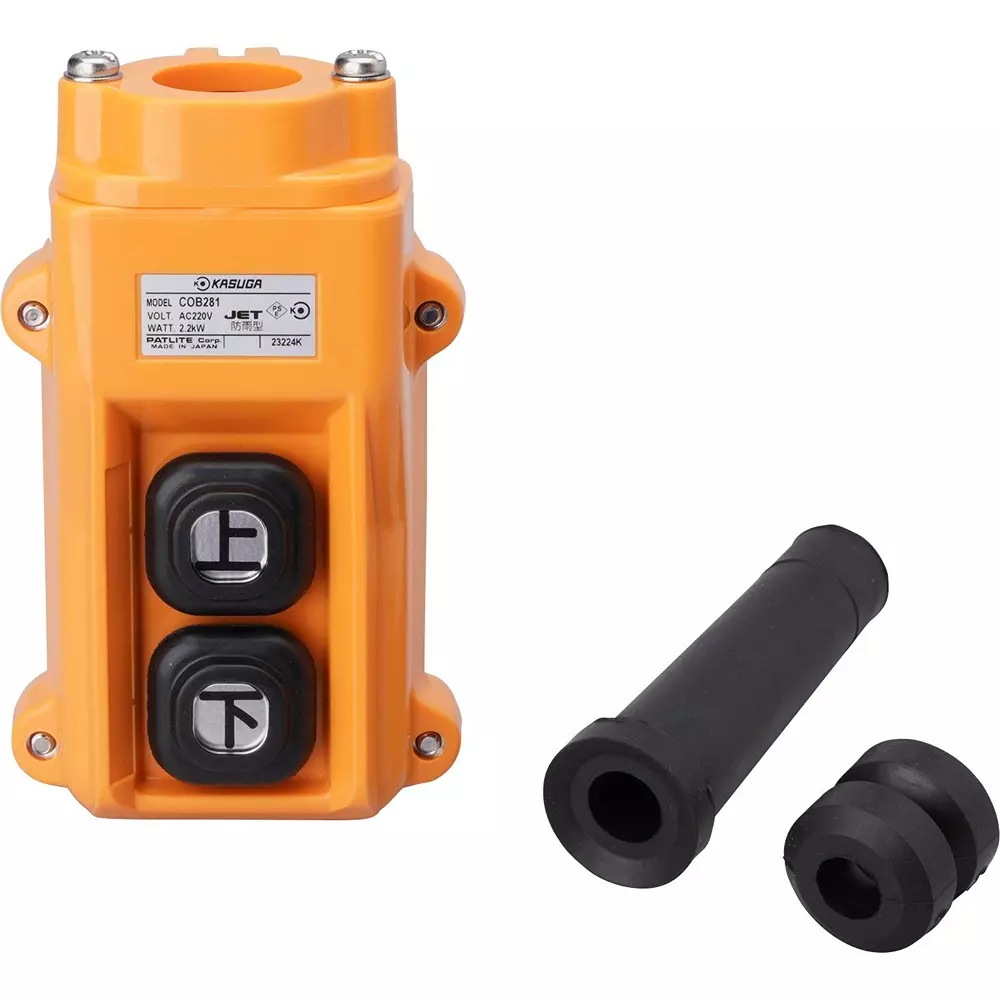

| Model No | COB 281 |
| Color | Black (cable bushing) |
| Type of Product | Pushbutton Switch |
| No. of Contacts | 2 |
Model No |
COB 281 |
Color |
Black (cable bushing) |
Type of Product |
Pushbutton Switch |
No. of Contacts |
2 |
Shape |
Rainproof type |
Protection Class |
IP65 |
Material |
Synthetic rubber (cable bushing) |
Monotaro ID |
35058956 |
Contact Configuration |
2a-2a |
Relative Humidity |
45 to 85% |
Rated Insulation Voltage (V) |
AC500 |
Country of Origin |
Japan |
Case Material |
High impact ABS resin |
Conformed Standard |
JIS C 8201-3, JIS C 0920, Electrical Appliance and Material Safety Law PSE (compliant product) |
Applicable Standard |
JIS C 8201-3, JIS C 0920, Electrical Appliance and Material Safety Law PSE (compliant product) |
Mass (Kg) |
0.3 |
Case Color |
Orange (equivalent to Munsell 7.5YR7/13) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Insulation Resistance (MOhm) |
100 or more (DC500V megger) |
Specifications |
Exposed button packing, for direct operation, with mechanical interlock |

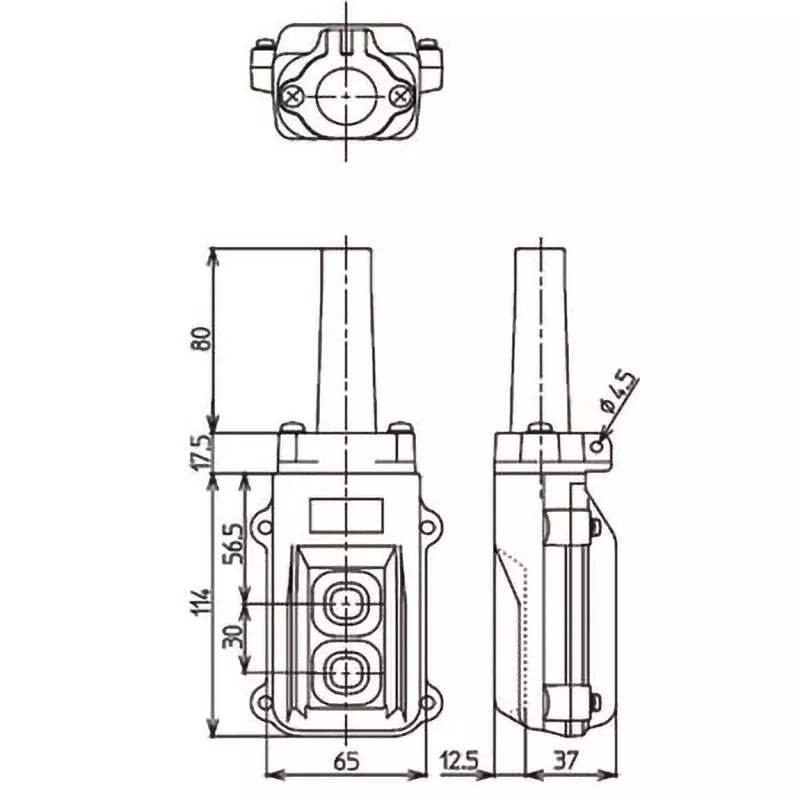

Outer Dimensions (mm) |
H211.5xW65xD49.5 |
Correction |
For direct operation |
Suitable Cable Outer Dia. (Φmm) |
10.3 to 13.5 |
Screw Material |
Case fastening screws: Stainless steel (± screws) |
