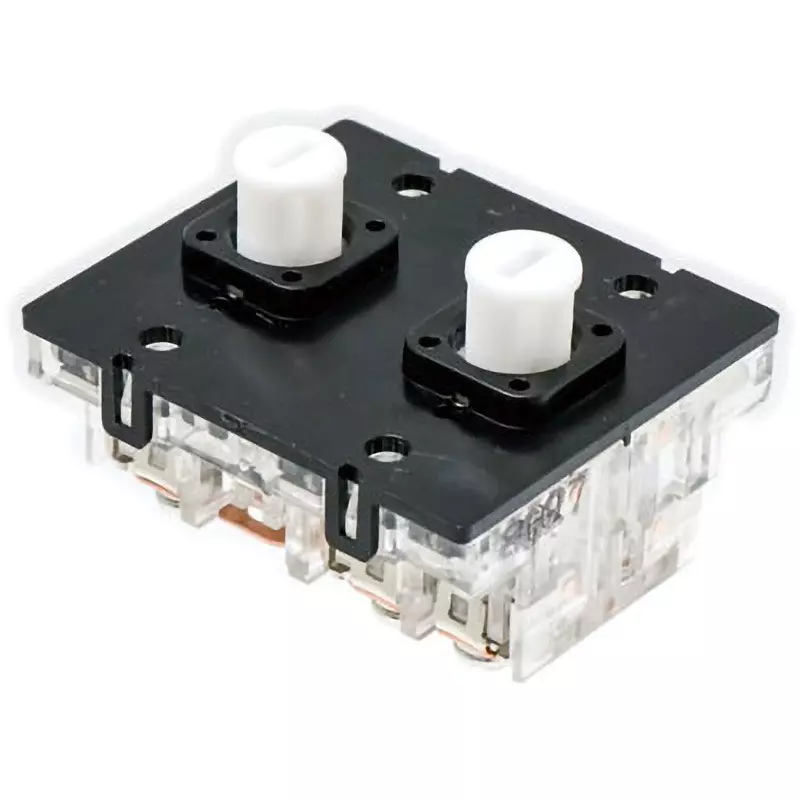

| Model No | UN80W60 |
| Type of Product | Switch Unit |
| Monotaro ID | 87424154 |
| Contact Configuration | 3a-3a |
Model No |
UN80W60 |
Type of Product |
Switch Unit |
Monotaro ID |
87424154 |
Contact Configuration |
3a-3a |
Withstand voltage (V / min) |
AC2000 |
Rated Insulation Voltage (V) |
AC500 |
Rated Carrying Current (A) |
5 |
Country of Origin |
Japan |
Rated Operating Current (A) |
AC15 inductive load: 2 (AC220V), 1 (AC440V) DC13 inductive load: 2 (DC24V) |
Import Country |
Direct Import from Japan |
Rated Operating Voltage (V) |
AC220/440 to DC 24 |
Name of Manufacturer/Packer/Importer |
Patlite Corporation |
Insulation Resistance (MOhm) |
100 or more (DC500V megger) |
Remark |
-For speed control and 3-circuit control. -Contacts operate in 3 stages. -Equipped with a mechanical interlock, so they cannot be turned on simultaneously. |
Connecting Terminal |
M4 screw (crimp terminal type) |
Contact System |
Single contact |
Correction |
3-stage switch (2-point type) |
